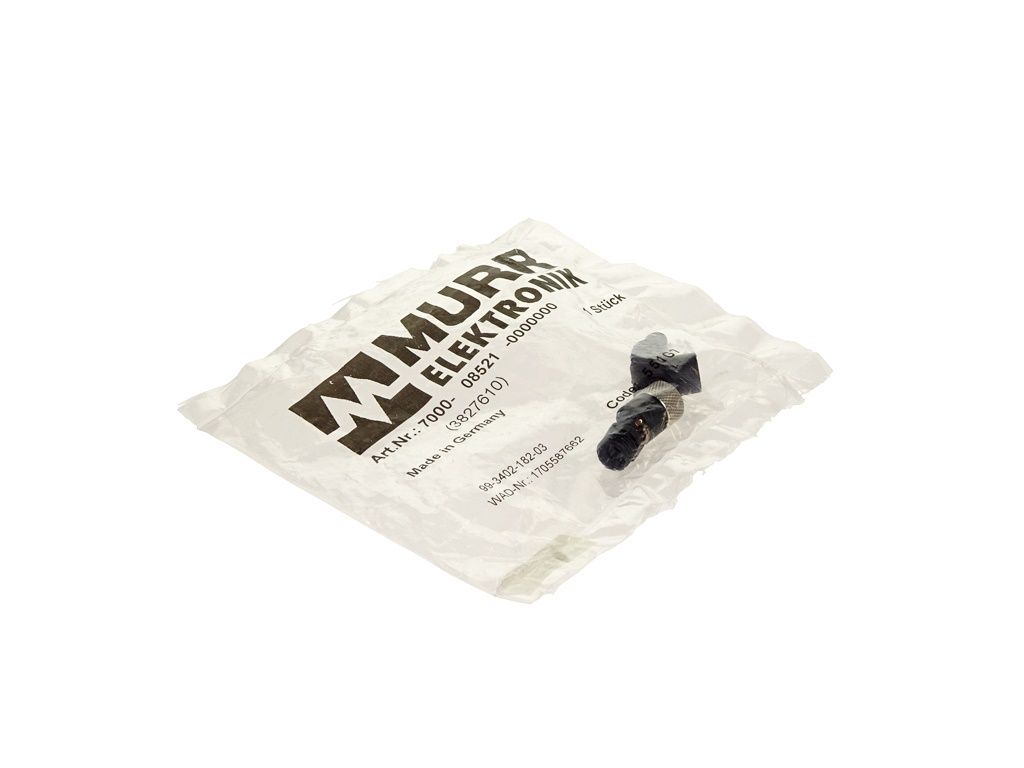

Murrelektronik 7000-08521-0000000

The Murrelektronik M8 Female Right-Angle Connector is a robust and reliable solution for compact and secure electrical connections. Designed with 3 poles and suitable for soldering, this connector ensures a stable and durable connection in various industrial applications. The right-angle design allows for flexible installation in tight spaces, making it ideal for use in machinery and automation systems.

This connector features a protection rating of IP67 according to EN IEC 60529, ensuring it is dust-tight and protected against temporary immersion in water. It supports a maximum operating voltage of 60V AC/DC and a current rating of up to 4A per contact, making it suitable for a wide range of power and signal transmission applications.

With a compact design, the connector measures 28mm in height, 18.5mm in width, and 12mm in depth. It accommodates wire cross-sections up to 0.25mm², providing flexibility in wiring options. The connector is designed for easy installation with a 90° rotation option, allowing for four different outlet directions.

Manufactured in Germany, this connector is built to withstand harsh environmental conditions, with an operating temperature range of -25°C to 85°C. It is essential to observe the permissible bending radii when laying cables to maintain the IP protection class and to protect the connectors from mechanical loads using suitable measures such as cable ties.
