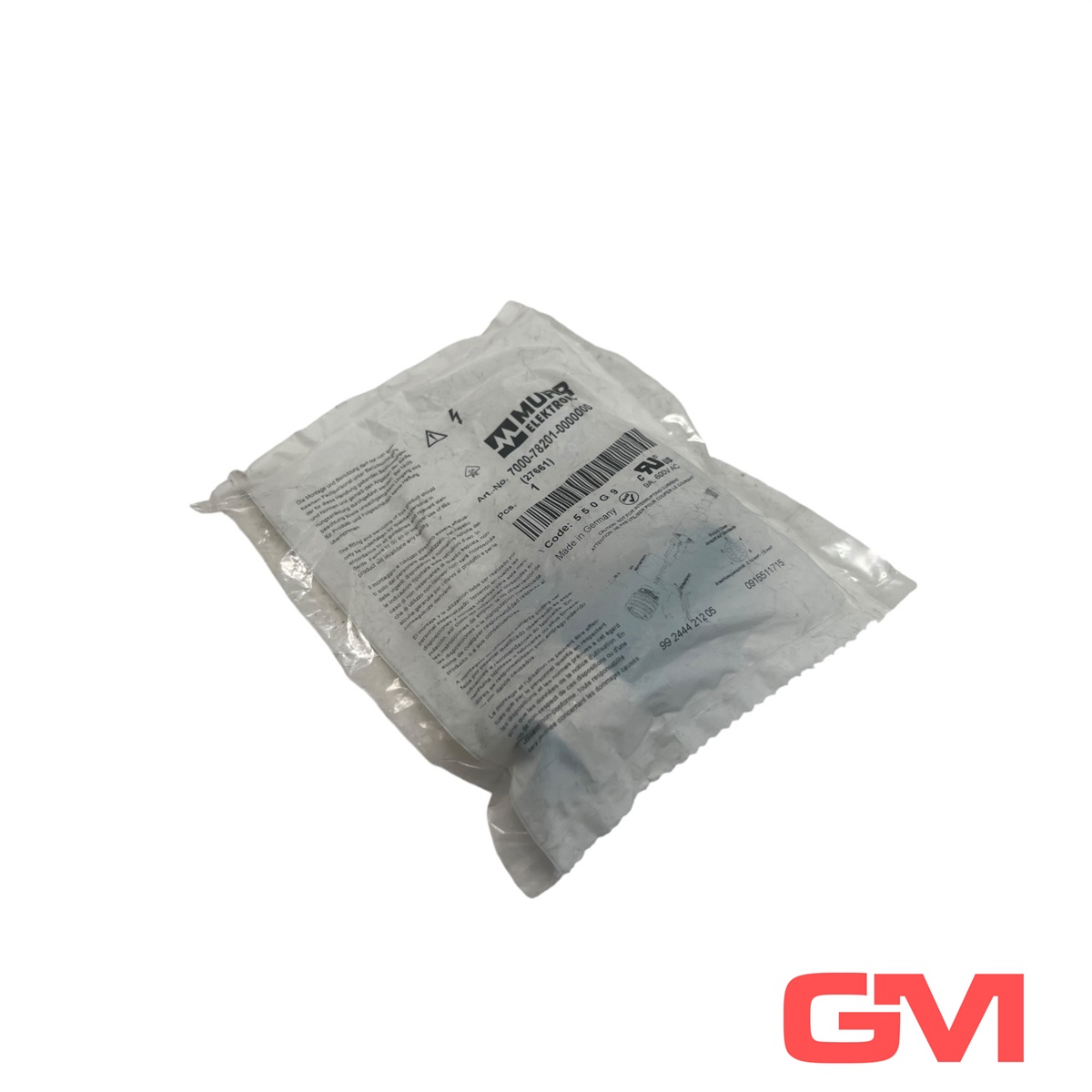

Murrelektronik 7000-78201-0000000

The Murrelektronik 7/8'' Female 0° Screw Terminal 5-Pol. connector is designed for robust and reliable performance in industrial environments. Featuring a straight 7/8'' female connector with 5 poles, this component is equipped with screw terminals that support a maximum connection cross-section of 1.5mm². The plastic housing offers excellent resistance to chemicals and oils, making it suitable for a wide range of applications. The connector is field-wireable and supports both AC and DC operating voltages up to 250V, with a maximum current of 9A per contact.

Engineered for durability, the connector boasts a gold-plated contact coating and a nickel-plated zinc die-casting locking mechanism. It meets the stringent IP67 protection standard when inserted and screwed, ensuring reliable operation in harsh conditions. The connector is designed for a minimum of 100 mating cycles, providing long-term reliability.

For optimal performance, it is crucial to observe the permissible bending radii when laying cables and to protect the connectors from mechanical loads using suitable measures such as cable ties. The plug connectors must not be connected or disconnected under load to prevent personal injury and ensure safety.

Applications: This connector is ideal for use in industrial automation, machinery, and equipment where reliable and secure electrical connections are essential.
