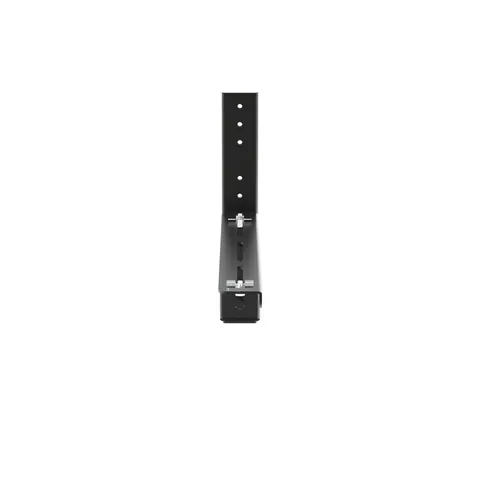

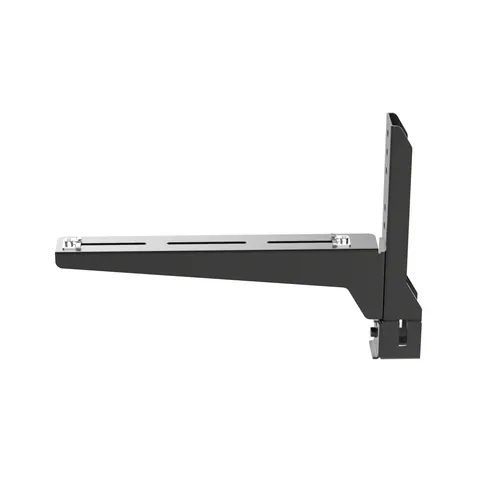

Panduit FR12ALB
Ladder Bracket for FiberRunner® System
Product Description
This steel ladder bracket is engineered for use in cable routing systems, specifically designed to support the FiberRunner® 12x4 System. It facilitates direct attachment to ladder rack rails measuring 0.375 inches in height by 1.5 inches in length (9.5mm x 38.1mm) without the need for a threaded rod. Designation Code: 12 x 4 FiberRunner Brackets.
The bracket comes complete with necessary hardware for secure mounting to the channel, including a clasp bracket, a vertical bracket assembly, an 'L' bracket assembly, along with multiple hex head cap screws and locknuts. The overall dimensions of the bracket are 12.92 inches in height, 18.72 inches in length, and 2.26 inches in width, with a total weight of approximately 4.75 pounds.
This product is UL Listed to the 2024 Optical Fiber Cable Routing Assemblies standards, ensuring compliance with the relevant tests outlined in Telcordia GR-63-Core for Network Equipment Building Systems Level 3. The ladder bracket is suitable for data center applications where effective segregation, routing, and protection of fiber optic and high-performance copper cabling are essential.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Italy, member since 2021, 10–19 employees
- Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Panduit
- Product Segment
- EDI-DC
- Product Type
- Ladder Rack
- Application
- (1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling, (2) It is Suited for Data Center Applicationswhere Cable is Routed from Distr
- Color
- Black
- For Use With
- Fast Assembly to Channel
- Includes
- (1) Clasp Bracket, (1) Vertical Bracket Assembly, (1) "L" Bracket Assembly, (3) 5/16 Helical Spring Lockwashers, (3) 5/16-18x3/4 Hex Head Cap Screws, (1) 1/4-20 T-Bolt, (1) 1/4-20 Hex KEPS Lock Nut
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Panduit FR12ALB, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
