Panduit
SE100PS-CR0

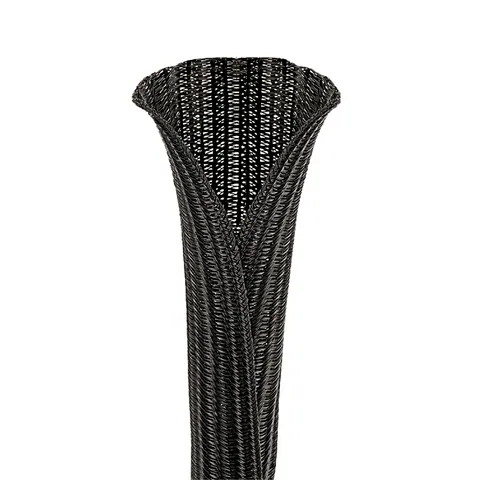

Pan-Wrap™ SE100PS-CR0 Split Sleeving, Black, PET, 1" Nom Dia., 100', PK1
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Offer with manufacturer lead time
Ships in:On Request
Best price:
Send request for price
Description
Active MatureRoHS Compliant
The SE100PS-CR0 Pan-Wrap Braided Sleeving allows for installation after wire or cable is routed and terminated. Ideal for applications where re-entry is required and provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible, and the open weave will not trap heat or humidity. Temperature range: -94°F – 257°F (-70°C – 125°C). Polyethylene Terephthalate. Nominal Diameter: 1" (25.4 mm), 100' (30.5 m) long. Color Black. 1/package.Additional Information
- Part Number
- SE100PS-CR0
- UPC
- 074983960736
- UNSPSC
- 39131602
- Tariff Code
- 5911900080
- Country of Origin
- MX
- ETIM
- Group Code : EG000003
- Group Description : Protective hose systems
- Class Description : Braided hose
- Class Code : EC001182
- Version : 7
Specifications
- Product Segment
- IEI
- Note
- Slit down length of product; Compatible with PWT100 Tool
- Application
- Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes; Lengthwise slit allows product to be installed over cable with ends already terminated.
- Sub Brand
- Pan-Wrap™
- Material
- Polyethylene Terephthalate (PET)
- Flammability Rating
- UL94V-0
- Color
- Black
- Resistance Properties
- Abrasion-Resistant
- Standards Met
- CSA Certified; UL Recognized E116868; RoHS Compliant
- Maximum Operating Temperature (°C)
- 125
- Minimum Operating Temperature (°C)
- -70
- Maximum Operating Temperature (°F)
- 257
- Minimum Operating Temperature (°F)
- -94
- Nominal Diameter (In.)
- 1
- Nominal Diameter (mm)
- 25.4
- Overall Length (ft.)
- 100
- Overall Length (m)
- 30.5
- Product Type
- Pan-Wrap™ Braided Sleeving
- Maximum Bundle Diameter (mm)
- 25.4
- Maximum Bundle Diameter (In.)
- 1
- Minimum Bundle Diameter (mm)
- 22.35
- Minimum Bundle Diameter (In.)
- 0.88
Packaging Details
- UPC
- 07498396073
- GTIN Package
- 00074983960736
- Standard Package Volume Ft3
- 1.5833
- Standard Package Weight Pounds
- 4.9500
- Std Package Height In
- 12.25
- Std Package Height MM
- 311.15
- Std Package Length In
- 19.65
- Std Package Length MM
- 499.11
- Std Package Width In
- 12.35
- Std Package Width MM
- 313.69
- Std. Pkg. UOM
- Roll
- UOM EA PK
- EA
- Std. Pkg. Qty.
- 1
- GTIN Carton
- 50074983960731
- Standard Carton Volume Ft3
- 3.1667
- Standard Carton Weight Pounds
- 9.9000
- Std Carton Height In
- 20.25
- Std Carton Height MM
- 514.35
- Std Carton Length In
- 24.5
- Std Carton Length MM
- 622.3
- Std Carton Width In
- 12.75
- Std Carton Width MM
- 323.85
- Std Ctn Qty
- 2
- Min. Order UOM
- Roll
- Country of Origin 2Digit
- MX
- RoHS Compliant
- Compliant
- EAN
- 00074983960736
- ARRA Compliant
- Y
- Mercury Content Indicator
- No
- Hazardous Material Flag
- N
- Min Order Qty
- 1
- Pallet Quantity
- 16
- Pallet Volume
- 25.333333
- Pallet Weight
- 79.2000
