Pepperl+Fuchs 182447

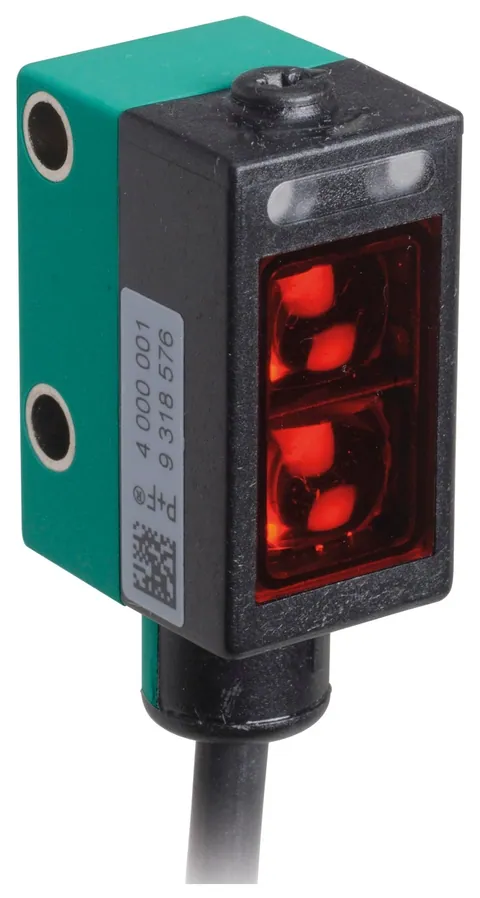

The triangulation sensor is equipped with background suppression, making it ideal for standard applications. The adjustable detection range spans from 15 mm to 120 mm, allowing for flexible implementation in various environments. Its miniature design is complemented by a fixed cable connection, enhancing installation convenience.

Utilizing modulated infrared light at 880 nm, the sensor effectively distinguishes between light and dark surfaces. The sensor operates with two push-pull outputs that can be programmed for light/dark switching. Its electrical specifications include an operating voltage of 10 to 30 V DC and a maximum switching current of 100 mA, with a switching frequency of 1000 Hz and a response time of 500 µs.

Compliance with standards is assured, adhering to EN 60947-5-2:2007 and IEC 60947-5-2:2007 for product standards. The sensor is rated at IP67/IP69K, ensuring reliable performance even in harsh conditions, with an ambient temperature range of -20 to 60 °C and a storage temperature capability of -40 to 75 °C.

For further details, the Designation Code is ML6-8-H-120-IR/59/65a/115/136.
