Phoenix Contact 1137052
String Combiner Box SOL-SC-1ST-0-DC-1MPPT-2300FS
1 / 1

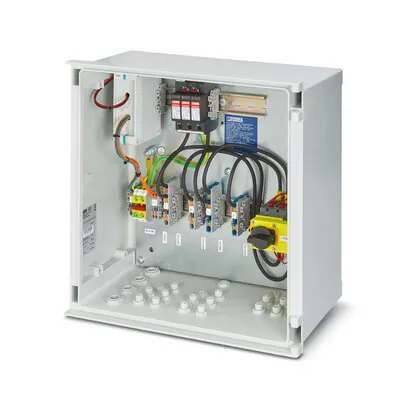

Manufacturer catalogue image
Product Description
This string combiner box, designated as SOL-SC-1ST-0-DC-1MPPT-2300FS, is engineered for photovoltaic systems operating at voltages up to 1000 V DC. It facilitates the connection of a single string and incorporates essential safety features such as type 2 surge protection and a DC fire service switch disconnector, which allows for remote access. The box is equipped with push-in connections for both input and output, ensuring secure and efficient wiring.
Constructed from polyester fiberglass reinforced material, this device is designed to withstand various environmental conditions with an operational temperature range of -20 °C to 40 °C. Its dimensions are 400 mm in width, 400 mm in height, and 200 mm in depth, providing a compact solution for installation. The unit also meets the IP65 protection level, ensuring durability against dust and water ingress.
With a maximum current rating of 40 A per string, the unit supports one maximum power point (MPP) tracker, which optimizes energy harvest from the photovoltaic system. The DC fire service switch enhances operational safety, while the remote indication contact operates at 24 V DC. This combiner box is suitable for integration into low-voltage switchgear and controlgear assemblies, adhering to the EN 61439-2 standard.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Czechia, member since 2023, 100–499 employees- Availability:
- 0 pcs.On RequestUpdated at: 24-04-2025
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Phoenix Contact
- Item number
- 1137052
- Packing unit
- 1 pc
- Minimum order quantity
- 25 pc
- Product key
- DTHTCA
- Design
- DC fire department switch
- Protection class
- I
