8903LXO80V02

Additional Information

Part Number

8903LXO80V02

UPC

785901057406

UNSPSC

39121529

Tariff Code

8536490065

Country of Origin

MX

Environment

Product Certifications

UL Listed || CSA

Nema Degree Of Protection

not rated (open device)

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1407018EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

N/A

Eu Rohs Directive

Compliant

Halogen Content Performance

Halogen free plastic parts product

Complementary

Height

224 mm

Control Type

no control units

[Uc] Control Circuit Voltage

110 V AC 50 Hz || 120 V AC 60 Hz

Inrush Power In Va

180-180 VA 60 Hz || 170-170 VA 50 Hz || 25-25 VA 50/60 Hz

Additional Included Device

none

Local Signalling

no indicator

Electrical Connection

screw-clamp terminals

Width

143 mm

Depth

83 mm

Line Rated Current

20-20 A tungsten || 30-30 A fluorescent

Poles Description

8P 8 NO

Specifications

Range Of Product

8903LX

Product Or Component Type

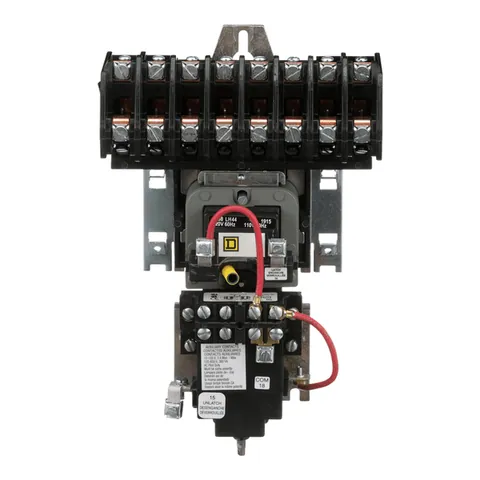

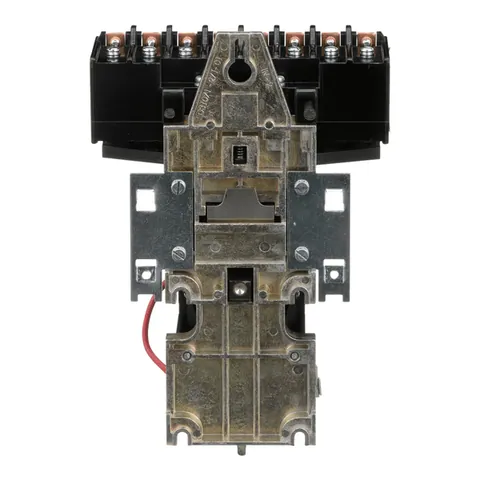

Mechanically Held Lighting Contactor

Control Circuit

separate control circuit
