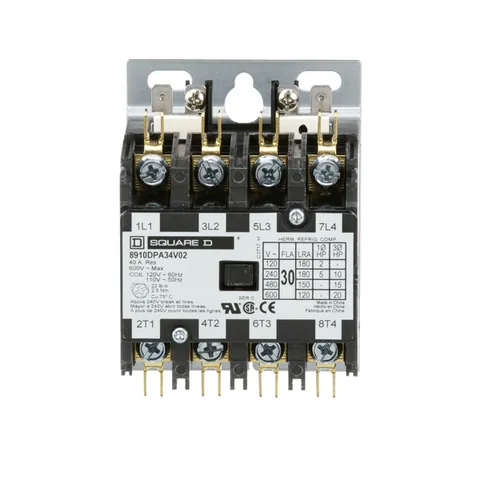

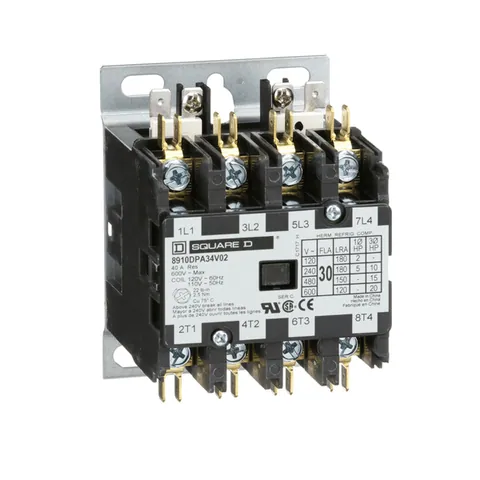

Schneider Electric 8910DPA34V02
Definite Purpose Contactor, 30A, 4 Pole, 20HP at 575VAC, 3 Phase, 110/120VAC 50/60Hz Coil, Open
Product Description
The 8910DP definite purpose contactor is specifically engineered for use in heating, air conditioning, and refrigeration systems. This model features a four-pole configuration with a line rated current of 30 amperes and supports a maximum resistive load of 40 amperes. Notably, it accommodates a range of horsepower ratings across different voltages: 2 HP at 115VAC single phase, 5 HP at 230VAC single phase, 10 HP at 230VAC three phase, 15 HP at 460VAC three phase, and 20 HP at 575VAC three phase.
The device operates with a coil voltage of 110/120VAC at 50/60Hz and includes a non-replaceable coil. With straight-through wiring, the contactor measures 3.78 inches in height, 2.75 inches in width, and 3.04 inches in depth. Its design includes quick connect terminals for electrical connection.
Additionally, this contactor is UL recognized and CSA certified, ensuring compliance with industry standards. The product is also compliant with various sustainability directives, including RoHS exemptions and substance declarations relevant to environmental safety.
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Specifications
- Brand
- Schneider Electric
- Product Certifications
- UL Recognized || CSA
- Warranty
- 18 months
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
