Schneider Electric
9999D10
1 / 1
Description
Active Mature

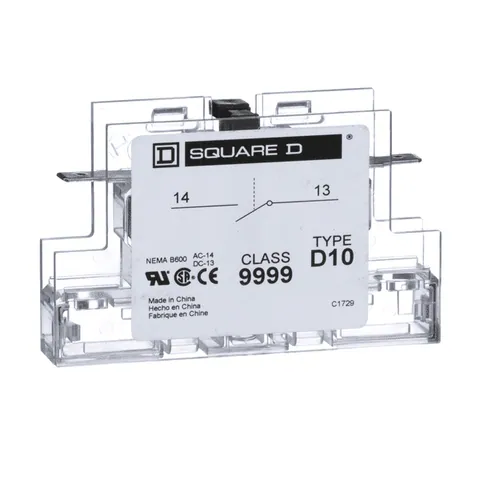

Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has 1 normally open contact for 50 to 90 A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.- Country of Origin
- CN
- Part Number
- 9999D10
- Tariff Code
- 99999999
- EAN
- 785901080862
- UPC
- 785901080862
- UNSPSC
- 39121529
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Environment
- Product Certifications
- CSA || UL Recognized
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant with Exemptions
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Complementary
- Auxiliary Contact Composition
- 1 NO
- Rated Breaking Capacity
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 0.75 A 480 V AC inductive control circuit UL 508 || 0.6 A 600 V AC inductive control circuit UL 508 || 5 A <= 600 V AC resistive control circuit UL 508
Specifications
- Range Of Product
- DPA
- Product Or Component Type
- Auxiliary Contact Module
- Product Destination
- contactor
