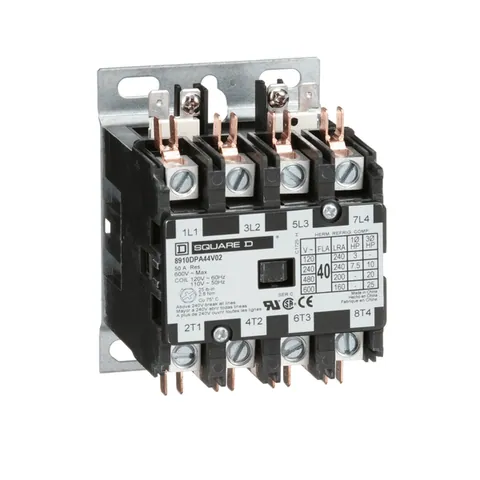

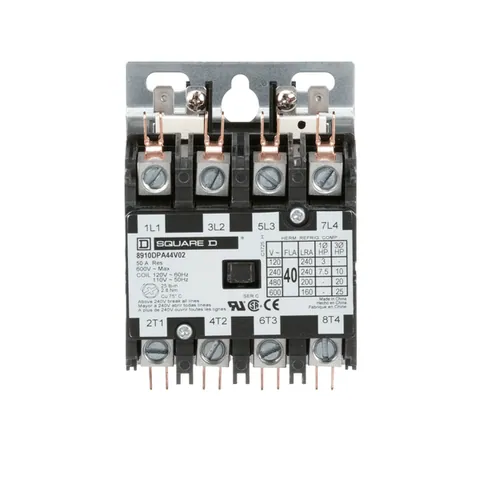

Schneider Electric 8910DPA44V02

The 8910DP series of definite purpose magnetic contactors are engineered for demanding applications within the heating, ventilation, and air conditioning (HVAC) industries. These contactors provide reliable switching capabilities with current ratings reaching up to 120 amperes resistive load and supporting motor loads of up to 50 HP at 600 VAC.

This specific four-pole definite purpose contactor is characterized by a full load rating of 40A, alongside a resistive rating of 50A. It exhibits diverse performance capabilities across various voltage and phase configurations, including 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase, 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase, and a substantial 25 HP rating when operating at 575 VAC in a three-phase system.

The nonreplaceable coil is designed to operate with a voltage of 110/120 VAC under both 50 Hz and 60 Hz frequencies. Featuring straight-through wiring, this contactor measures 3.78 inches in length, 2.75 inches in width, and 3.04 inches in height.

Certifications: This device is recognized under UL component standards and certified by CSA, ensuring adherence to rigorous safety protocols.
