Schneider Electric
8910DPA63V14

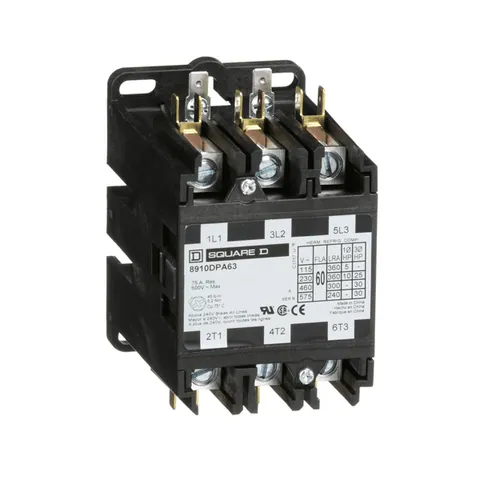

Contactor, Definite Purpose, 60A, 3 pole, 30HP at 575VAC, 3 phase, 24/24VAC 50/60Hz coil, open
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Additional Information
- Part Number
- 8910DPA63V14
- UPC
- 785901080831
- UNSPSC
- 39121529
- Tariff Code
- 8536490065
- Country of Origin
- CN
Environment
- Product Certifications
- UL Recognized || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Locked Rotor Rated Current
- 360 A 277 V AC || 300 A 460 V AC || 240 A 575 V AC
- Maximum Horse Power Rating
- 5-5 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 1 phase || 30-30 hp 460 V AC, 3 phase || 30-30 hp 575 V AC, 3 phase || 25-25 hp 230 V AC, 3 phase
- Phase
- 3 phase
- Electrical Connection
- box lugs || quick connect terminals
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Range Of Product
- DPA
- Product Or Component Type
- Definite Purpose Contactor
- Pole Contact Composition
- 3 NO
- Poles Description
- 3P
- Line Rated Current
- 60 A
