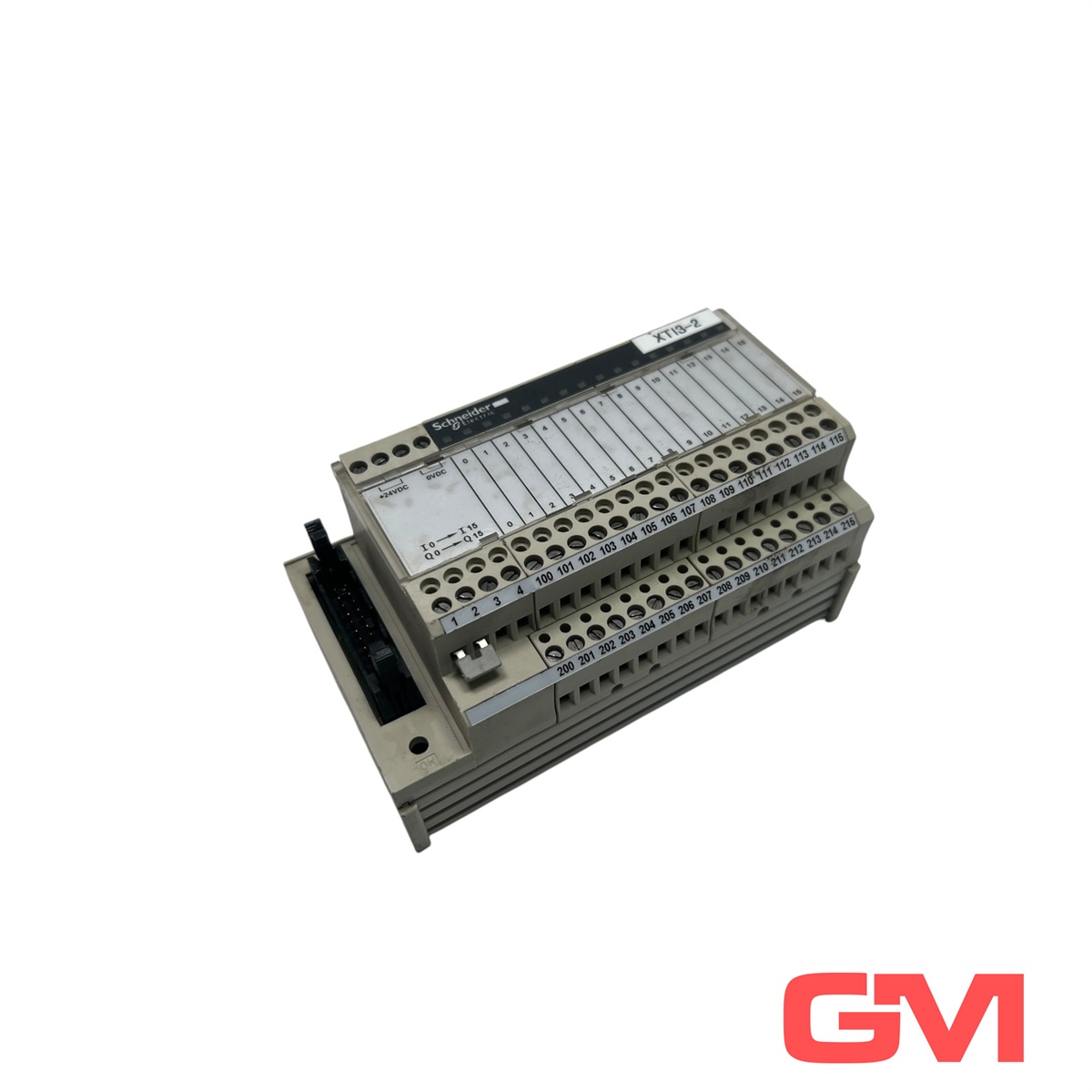

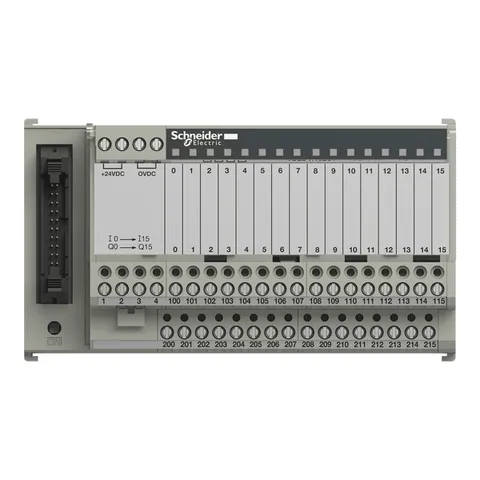

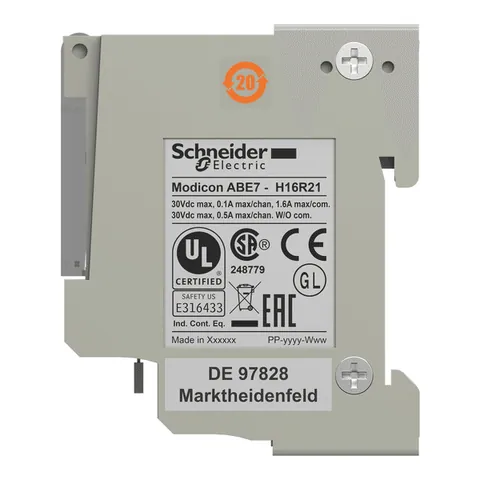

passive connection sub-base ABE7 - 16 inputs or outputs - Led
ABE7H16R21
ABE7H16R21
ABE7H16R21
ABE7H16R21
ABE7H16R21
  • Get up to 90 days payment terms from 500+ suppliers
  • Reselling discounts up to 40%!
Sign-Up
$201.74
1
Payment methods:
A total of 475 Parts In-Stock from 34 Distributors

Additional Information

Part Number
ABE7H16R21
UNSPSC
32151603
Tariff Code
8538908180
Country of Origin
LV

Environment

Product Certifications
DNV || CSA || UL || GL || EAC
Resistance To Radiated Fields
10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Ambient Air Temperature For Operation
-5-60 °C IEC 61131-2
Shock Resistance
15 gn 11 ms IEC 60068-2-27
Vibration Resistance
2 gn 10-150 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP2X conforming to IEC 60529
Pollution Degree
2 IEC 60664-1
Resistance To Incandescent Wire
750 °C IEC 60695-2-11
Ambient Air Temperature For Storage
-40-80 °C IEC 61131-2
Resistance To Electrostatic Discharge
4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
Resistance To Fast Transients
2 kV level 3 IEC 61000-4-4

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Mercury Free
Yes
Environmental Disclosure
ENVPEP121229EN
Sustainable Offer Status
Green Premium product
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
California Proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation
X
Circularity Profile
ENVEOLI1212029EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Pin Number
20 pins
Short-Circuit Protection
2 A internal fuse, 5 x 20 mm, fast blow PLC end)
Number Of Horizontal Rows
2
Current Per Channel
0.5 A
Status Led
1 LED per channel (Green) channel status || 1 LED (Green) power ON
Installation Category
II IEC 60664-1
Maximum Current Per Output Common
1.8 A
[Ui] Rated Insulation Voltage
2000 V
Net Weight
0.3 kg
Fixing Mode
by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
Connector Type
HE-10
Polarity Distribution
0 V or 24 V
Tightening Torque
0.6 N.m flat Ø 3.5 mm
Maximum Supply Current
1.8 A
Supply Circuit Type
DC
Width
125 mm
Voltage Drop On Power Supply Fuse
0.3 V

Specifications

Range Of Product
Modicon ABE7
Product Or Component Type
passive discrete I/O sub-base
Number Of Terminal Per Channel
2
Connections - Terminals
screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
Number Of Channels
16
Sub-Base Type
I/O sub-base
[Us] Rated Supply Voltage
19...30 V IEC 61131-2

Documents

Data Sheet

Download
