Schneider Electric
ABL8WPS24400
1 / 5
Description
Active Mature

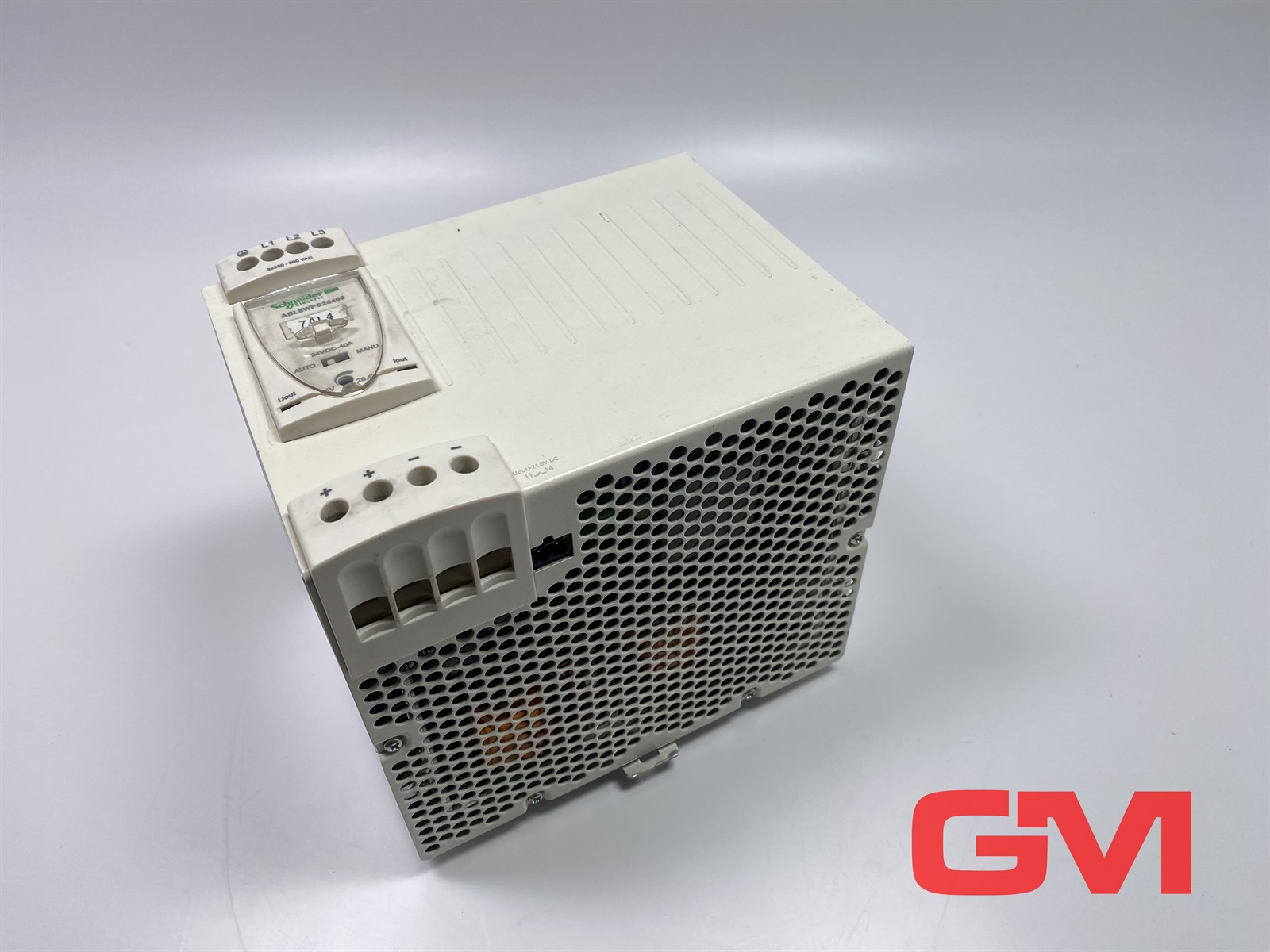

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 380V to 500V AC, a rated output current of 40A at 24V DC and a rated power output of 960W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 165mm-wide. It weighs 2,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GV2ME07 thermal magnetic circuit breaker is recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.- Country of Origin
- PH
- Part Number
- ABL8WPS24400
- Tariff Code
- 85044095
- EAN
- 3389119405652
- UNSPSC
- 39121004
€468.00
net€520.00
1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 1 pc.In-StockUpdated at: 14-06-2024
- Warranty:
- 24 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
A total of 131 Parts In-Stock from 20 Distributors
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Available Offers (22)
Schneider Electric
ABL8WPS24400
- Condition:
- New Factory Sealed
- Available:
- 9 pcs.In-StockUpdated at: 04-09-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
1
Schneider Electric
ABL8WPS24400
- Condition:
- New Factory Sealed
- Available:
- 15 pcs.In-StockUpdated at: 06-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
ABL8WPS24400
- Condition:
- New Factory Sealed
- Available:
- 10 pcs.In-StockUpdated at: 08-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
ABL8WPS24400
- Condition:
- New Factory Sealed
- Available:
- 55 pcs.In-StockUpdated at: 09-11-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Offer with manufacturer lead time
Ships in:On Request
Best price:
€244.23
Environment
- Standards
- CSA C22.2 No 60950-1 || UL 508 || EN/IEC 62368-1
- Ambient Air Temperature For Operation
- 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m) || -25-50 °C without derating mounting position A < 6561.68 ft (2000 m)
- Product Certifications
- cCSAus || EAC || UL || RCM
- Environmental Characteristic
- EMC IEC 61000-6-1 || EMC IEC 61000-6-3 || EMC EN 55024 || EMC IEC 61000-6-4 || EMC EN/IEC 61204-3 || safety EN 61204-4 || safety IEC 60950-1
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Operating Altitude
- 6561.68 ft (2000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP061202EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI0612002EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Output Coupling
- parallel || series
- Height
- 143 mm
- Provided Equipment
- power factor correction filter IEC 61000-3-2
- Status Led
- 1 LED (green and red) output voltage || 1 LED (green, red and orange) output current
- Efficiency At Full Load
- 320...550 V AC
- Connections - Terminals
- removable screw terminal block 2 x 2.5 mm², diagnostic relay || screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection || screw type terminals 4 x 0.5...4 x 10 mm², AWG 22...AWG 8) output connection
- Dielectric Strength
- 3500 V with between input and ground || 4000 V with between input and output || 500 V with between output and ground
- Marking
- CE
- Supply
- SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
- Net Weight
- 2.7 kg
- Output Protection Type
- against overload manual or automatic reset || against overvoltage 30...32 V, manual reset || against short-circuits manual or automatic reset || against undervoltage tripping if U < 21.6 V || thermal automatic reset
- Power Dissipation In W
- 76.8 W
- Output Voltage Limits
- 24...28.8 V adjustable
- Mounting Support
- 35 x 7.5 mm symmetrical DIN rail || 35 x 15 mm symmetrical DIN rail
- Operating Position
- vertical
- Width
- 166 mm
- Inrush Current
- 25 A
- Efficiency
- 92 %
- Depth
- 160 mm
- Power Factor
- 0.85 at 24 V DC
Specifications
- Range Of Product
- Modicon Power Supply
- Output Voltage
- 24 V DC
- Product Or Component Type
- power supply
- Power Supply Type
- regulated switch mode
- Anti-Harmonic Filter
- low frequency harmonic currents
- Input Voltage
- 380...500 V AC three phase L1, L2, L3
- Permissible Temporary Current Boost
- 1.5 x In for 4 s)
- Power Supply Output Current
- 40 A
- Kw Rating
- 960 W
