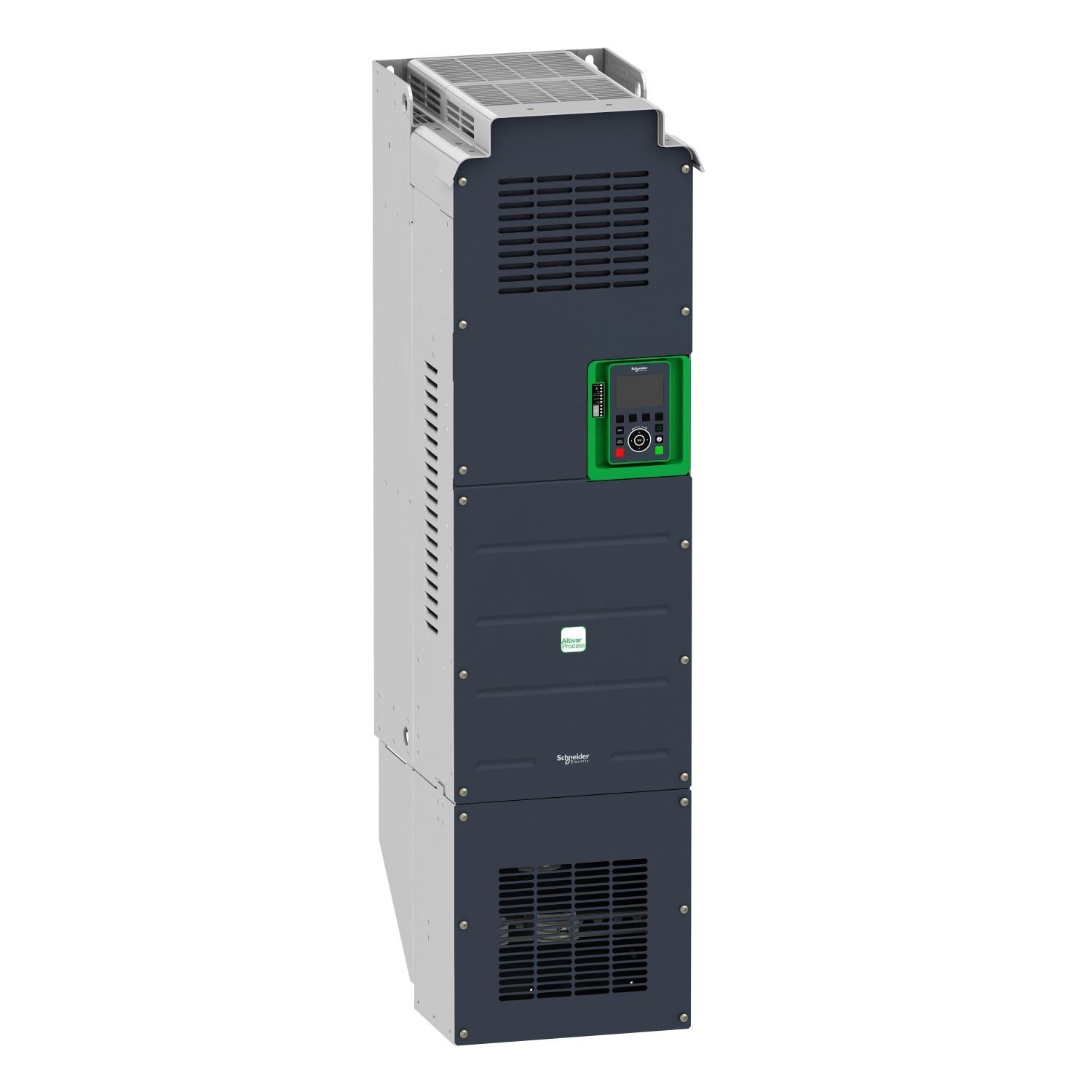

Schneider Electric ATV630D55N4

The Schneider Electric Altivar Process ATV600 Variable Speed Drive is a versatile solution that can handle a wide range of motor types, including 3-phase synchronous and asynchronous power motors. It boasts three built-in RJ45 communication ports, one Ethernet port, and two serial ports for seamless connectivity. This drive operates at a rated supply voltage from 380V to 480V AC, providing up to 30% energy savings when on standby due to its innovative 'Stop and Go' operation.

This variable speed drive is suitable for motors with power ratings up to 55kW / 75hp for applications requiring slight overload (up to 120%) and up to 45kW / 60hp for applications requiring significant overload (up to 150%). It weighs 56.5kg and has dimensions of 290mm wide, 922mm high, and 323mm deep.

This drive is particularly focused on fluids management processing and energy saving, making it ideal for applications in water and wastewater, mining, minerals and metals, oil and gas, and food and beverage industries. It comes with accessories like fan kits and graphic display terminals, as well as options such as I/O expansion modules, communication modules, and EMC input filters.

The Altivar Process ATV600 is designed to be mounted in a vertical position (+/- 10 °) on a wall. This drive meets the major needs of process and utilities by supporting energy management, asset management, and overall performance of the process.
