Schneider Electric ATV930D90N4

Name: Altivar Process ATV900 Variable Speed Drive, 90kW, 400-480V, with Braking Unit
Brand: Schneider Electric
SKU: ATV930D90N4

Altivar Process ATV900 Variable Speed Drive, 90kW, 400-480V, with Braking Unit

1 / 5

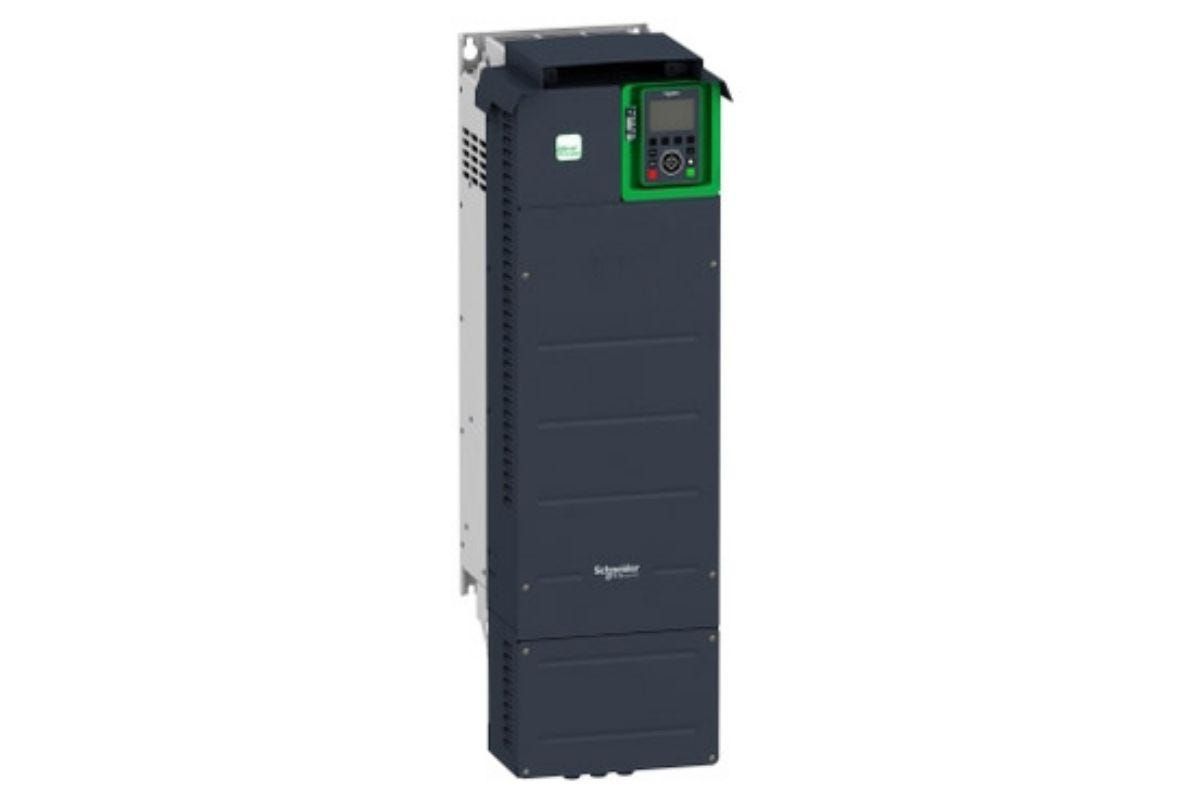

Manufacturer catalogue image

Product Description

Lifecycle Status:

The Altivar Process ATV900 is a versatile variable speed drive capable of feeding both synchronous and asynchronous 3-phase power motors. It is designed for industrial processes in various sectors such as oil and gas, mining, minerals and metals, food and beverage water and wastewater.

This drive supports motor ratings up to 90kW/125hp for applications requiring slight overload (up to 120%). For applications requiring significant overload (up to 150%), it can handle motor ratings up to 75kW/100hp. It operates at a rated supply voltage ranging from 380V to 480V AC.

The Altivar Process ATV900 offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures. Network services ensure operation continuity even in case of connection breakdown.

The drive is designed to be mounted in a vertical position (+/- 10 °) on a wall. It includes a braking unit for added safety and control.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United Kingdom, member since 2023
Availability:: 5 pcs.
In-Stock
Updated at: 05-09-2026
Warranty:: 12 months
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Discrete Input Logic: positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V
Power Dissipation In W: natural convection 196 W 380 V 2.5 kHz || forced convection 1585 W 380 V 2.5 kHz
Analogue Output Type: software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
Discrete Output Type: logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA
Maximum Switching Current: relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC || relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
4 Quadrant Operation Possible
