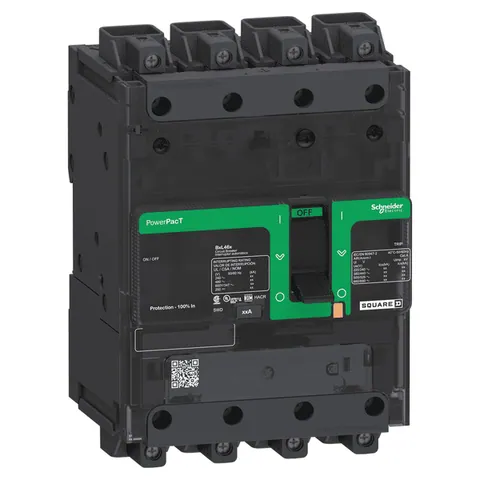

Schneider Electric BDL46060LU

The PowerPacT B-Frame circuit breaker is designed for thermal-mechanical circuit protection within a compact form factor. This unit is rated at 60A and features a breaking capacity of 14kA at 600Y/347VAC. It incorporates thermal magnetic technology, enabling reliable performance under varying electrical conditions.

Equipped with dual-break rotating contacts, this circuit breaker effectively minimizes peak current during short circuit events. The design includes a push-to-trip button for manual operation and flexibility in mounting, accommodating both standard back pan and integrated DIN rail setups. The unit also features EverLink lugs on both termination ends, which prevent cable loosening over time.

This circuit breaker is compliant with UL, CSA, NOM, and IEC standards, and is CE marked. It supports continuous current ratings of 80% and includes a control wire terminal on the line end EverLink lug. The product's construction adheres to environmental regulations, being PVC-free, halogen-free, and suitable for safe disposal in accordance with EU directives.
