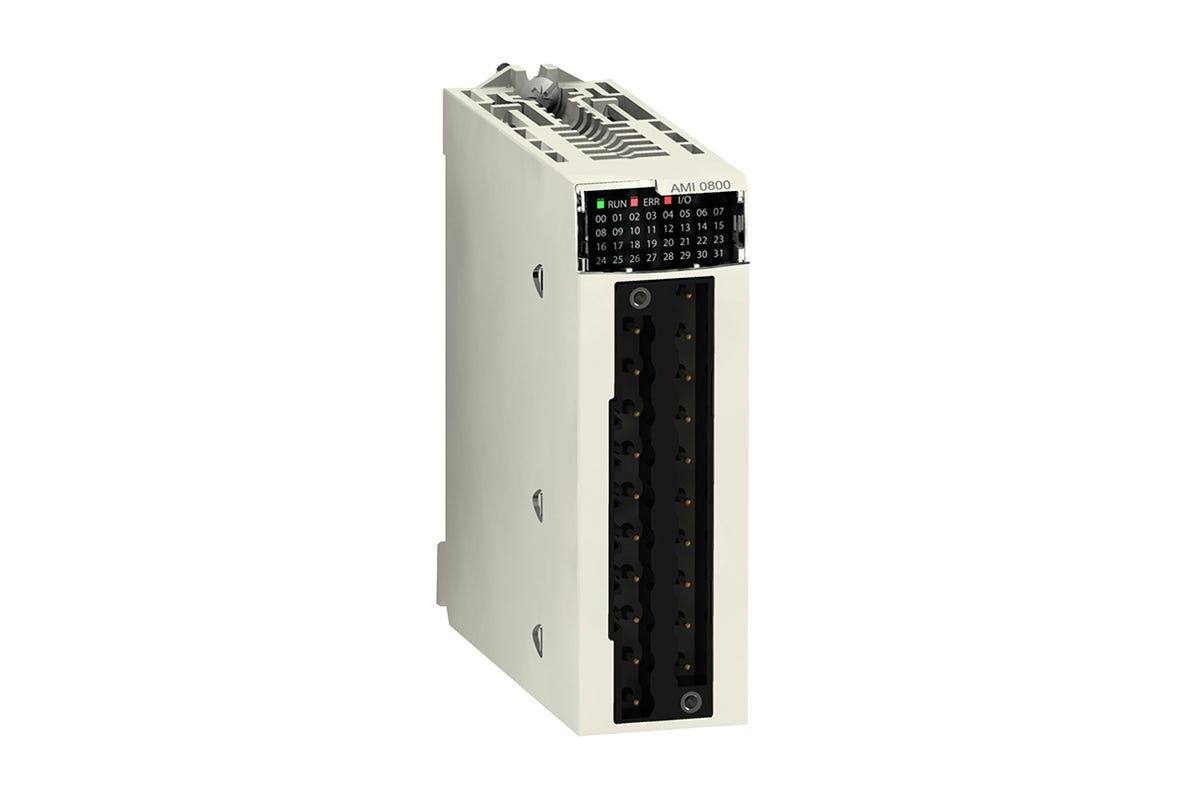

- Mtbf Reliability
- 1700000 H
- Measurement Error
- <= 0.1 % of full scale +/- 10 V 0...60 °C || <= 0.1 % of full scale +/- 5 V 0...60 °C || <= 0.1 % of full scale 0...10 V 0...60 °C || <= 0.1 % of full scale 0...5 V 0...60 °C || <= 0.1 % of full scale 1...5 V 0...60 °C || <= 0.3 % of full scale +/- 20 mA 0...60 °C || <= 0.3 % of full scale 0...20 mA 0...60 °C || <= 0.3 % of full scale 4...20 mA 0...60 °C || 0.15 % of full scale +/- 20 mA 25 °C || 0.15 % of full scale 0...20 mA 25 °C || 0.15 % of full scale 4...20 mA 25 °C || 0.075 % of full scale +/- 10 V 25 °C || 0.075 % of full scale 0...10 V 25 °C || 0.075 % of full scale 0...5 V 25 °C || 0.075 % of full scale 1...5 V 25 °C || 0.075 % of full scale +/- 5 V 25 °C
- Maximum Conversion Value
- +/- 11.4 V +/- 10 V || +/- 11.4 V 0...10 V || +/- 11.4 V 0...5 V || +/- 11.4 V 1...5 V || 0...30 mA +/- 20 mA || 0...30 mA 0...20 mA || 0...30 mA 4...20 mA || 0...30 mA +/- 5 V
- Type Of Filter
- first order digital filtering
- Status Led
- 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
- Precision Of Internal Conversion Resistor
- 0.1 % - 15 ppm/°C
- Temperature Drift
- 30 ppm/°C +/- 10 V || 30 ppm/°C +/- 5 V || 30 ppm/°C 0...10 V || 30 ppm/°C 0...5 V || 30 ppm/°C 1...5 V || 50 ppm/°C +/- 20 mA || 50 ppm/°C 0...20 mA || 50 ppm/°C 4...20 mA
- Recalibration
- factory calibrated
- Common Mode Rejection
- 100 dB
- Current Consumption
- 150 mA 3.3 V DC || 41 mA 24 V DC
- Analogue Input Resolution
- 15 bits + sign
- Minimum Crosstalk Attenuation
- 80 dB
- Net Weight
- 0.165 kg
- Input Impedance
- 10 MOhm in voltage mode || 250 Ohm in current mode
- Isolation Voltage
- 1400 V DC between channels and ground || 1400 V DC between channels and bus || 50 V DC between channels
- Fast Read Cycle Time
- 1 ms + 1 ms x number of channels used
- Power Consumption In W
- 0.90 W 24 V DC typical || 1.10 W 24 V DC maximum || 0.32 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
- Digital Value Format
- 32768 to + 32767 in maximum user scale || +/- 10000 by default
- Nominal Read Cycle Time
- 9 ms for 8 channels
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Analog/Digital Conversion
- 16 bits
- Measurement Resolution
- 0.36 mV +/- 10 V || 0.36 mV 0...10 V || 0.36 mV 0...5 V || 0.36 mV 1...5 V || 0.36 mV +/- 5 V || 1.4 µA +/- 20 mA || 1.4 µA 0...20 mA || 1.4 µA 4...20 mA
- Permitted Overload On Inputs
- +/- 30 mA 0...20 mA || +/- 30 mA 4...20 mA || +/- 30 V +/- 10 V || +/- 30 V +/- 5 V || +/- 30 V 0...10 V || +/- 30 V 0...5 V || +/- 30 V 1...5 V || +/- 30 mA +/- 20 mA
