Schneider Electric

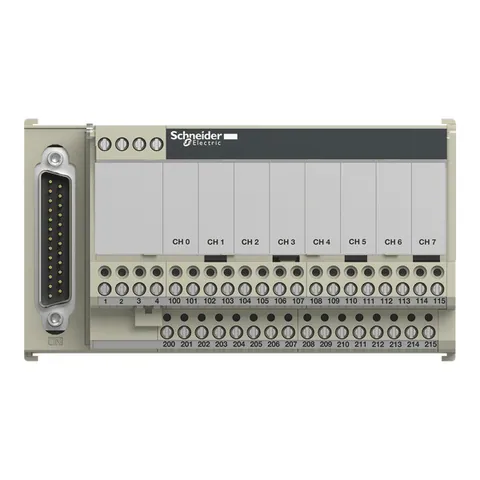

ABE7CPA02
connection sub-base ABE7 - for passive distribution of 8 channels
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€55.80
1
Payment methods:
A total of 336 Parts In-Stock from 35 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€61.66
Additional Information
- Part Number
- ABE7CPA02
- UNSPSC
- 32151603
- Tariff Code
- 8538908180
- Country of Origin
- LV
Environment
- Product Certifications
- GL || DNV || UL || CSA || EAC
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Ambient Air Temperature For Operation
- 0-60 °C IEC 61131-2
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Pollution Degree
- 2 IEC 60664-1
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Protective Treatment
- TC
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP121229EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1212029EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Installation Category
- II IEC 60664-1
- Net Weight
- 0.29 kg
- Fixing Mode
- by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Connection To Plc
- SUB-D 25
- [Ui] Rated Insulation Voltage
- 2000 V terminals/mounting rails
- Function Of Module
- analogue input current Premium || analogue input voltage Premium || Pt 100 Premium
Specifications
- Range Of Product
- Modicon ABE7
- Product Or Component Type
- connection sub-base for counter and analogue channels
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
- Number Of Channels
- 8
