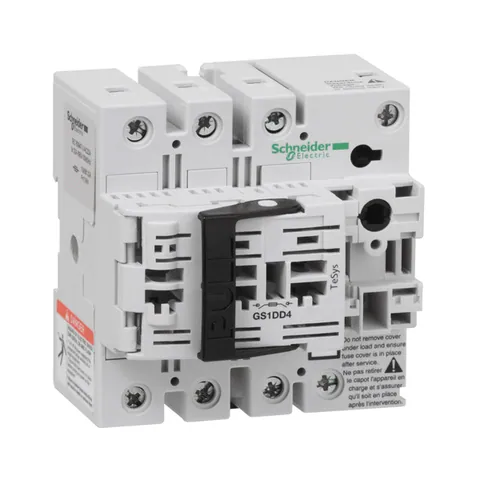

GS1DD4

Environment

Product Certifications

CE

Ambient Air Temperature For Operation

-20-70 °C

Height

98 mm

Standards

IEC 60947-3

Net Weight

0.5 kg

Ambient Air Temperature For Storage

-40-80 °C

Protective Treatment

TH

Ip Degree Of Protection

IP20 IEC 60529 with terminal cover)

Fire Resistance

960 °C body IEC 60695-2-1

Width

96 mm

Depth

112 mm

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP2003008EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI2003008EN

Eu Rohs Directive

Compliant

Complementary

Type Of Operating Handle

external frontal || external left side || direct frontal || external right side

Mounting Support

plate || rail

Connections - Terminals

power circuit screw-clamp terminals 2.5-16 mm² flexible

[Uimp] Rated Impulse Withstand Voltage

8 kV

Making Capacity

320 A 400 V AC-23B

Short-Circuit Withstand

5.5 kA

[Ui] Rated Insulation Voltage

800 V AC 50/60 Hz

[Icm] Rated Short-Circuit Making Capacity

100 kA 400 V with protection by gG fuses

Electrical Durability

1500 cycles AC-23A || 1500 cycles AC-23B || 300 cycles DC-23A || 300 cycles DC-23B

Mechanical Durability

20000 cycles

Tightening Torque

power circuit 3-3 N.m screw-clamp terminals

Rated Operational Power In W

15 kW 400 V || 18.5 kW 500 V || 25 kW 690 V

Breaking Capacity

256 A 400 V AC-23B)

Specifications

Network Frequency

50/60 Hz

Fuse Size

10 x 38 mm

[Ith] Conventional Free Air Thermal Current

32 A (at 40 °C)

Network Type

DC || AC

Protected Poles Description

3t

Product Or Component Type

switch-disconnector-fuse

Product Name

TeSys GS

Range

TeSys

Contacts Type And Composition

4 NO

[Ie] Rated Operational Current

20 A 440 V 2 poles in series per phase DC-23A || 20 A 440 V 2 poles in series per phase DC-23B || 32 A 400 V AC-23A || 32 A 400 V AC-23B || 32 A 500 V AC-23A || 32 A 500 V AC-23B || 32 A 690 V AC-23A || 32 A 690 V AC-23B

Fuse Type

NFC

Poles Description

3P + Nc

Device Application

protection

Device Short Name

GS1 DD
