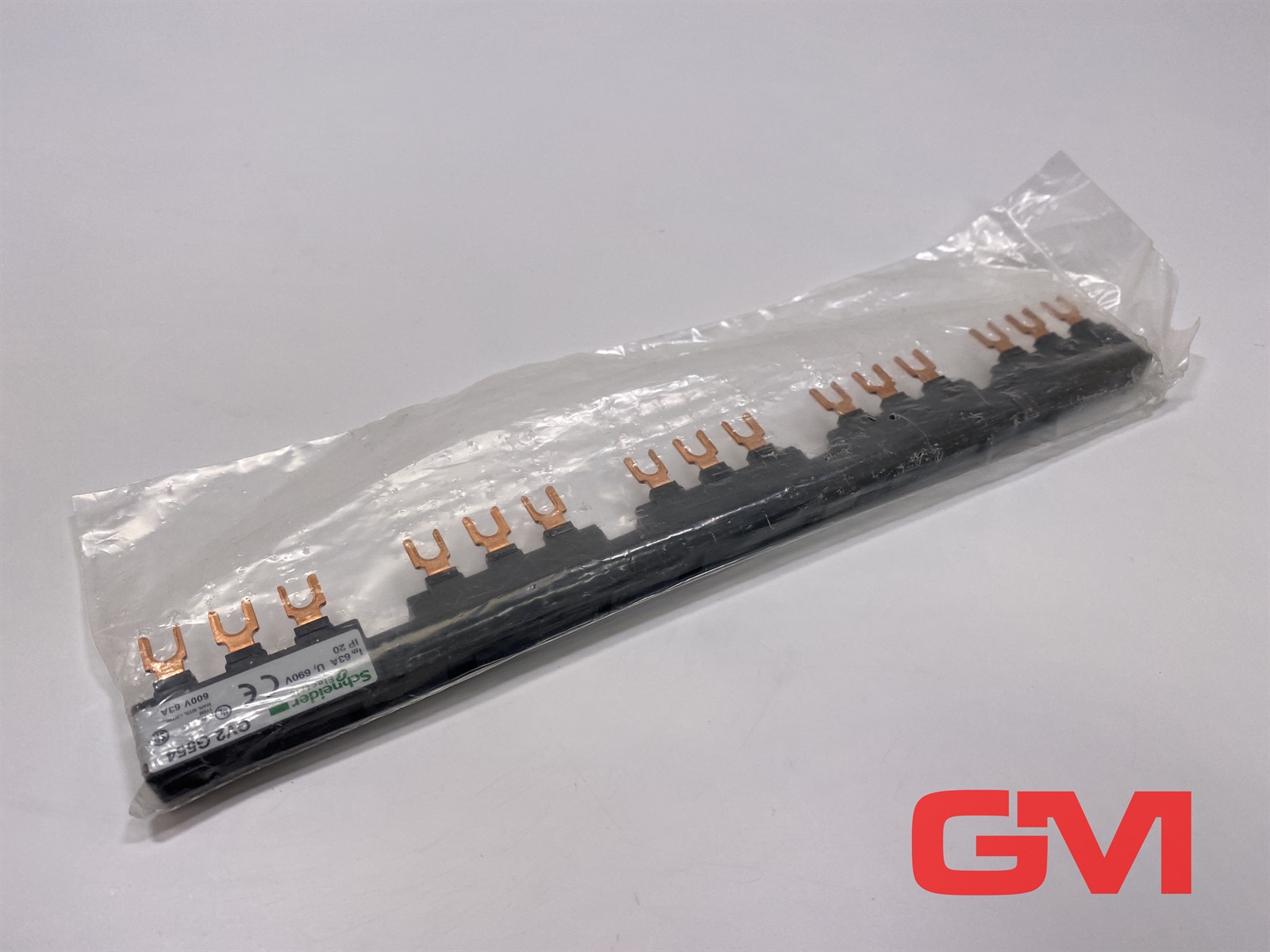

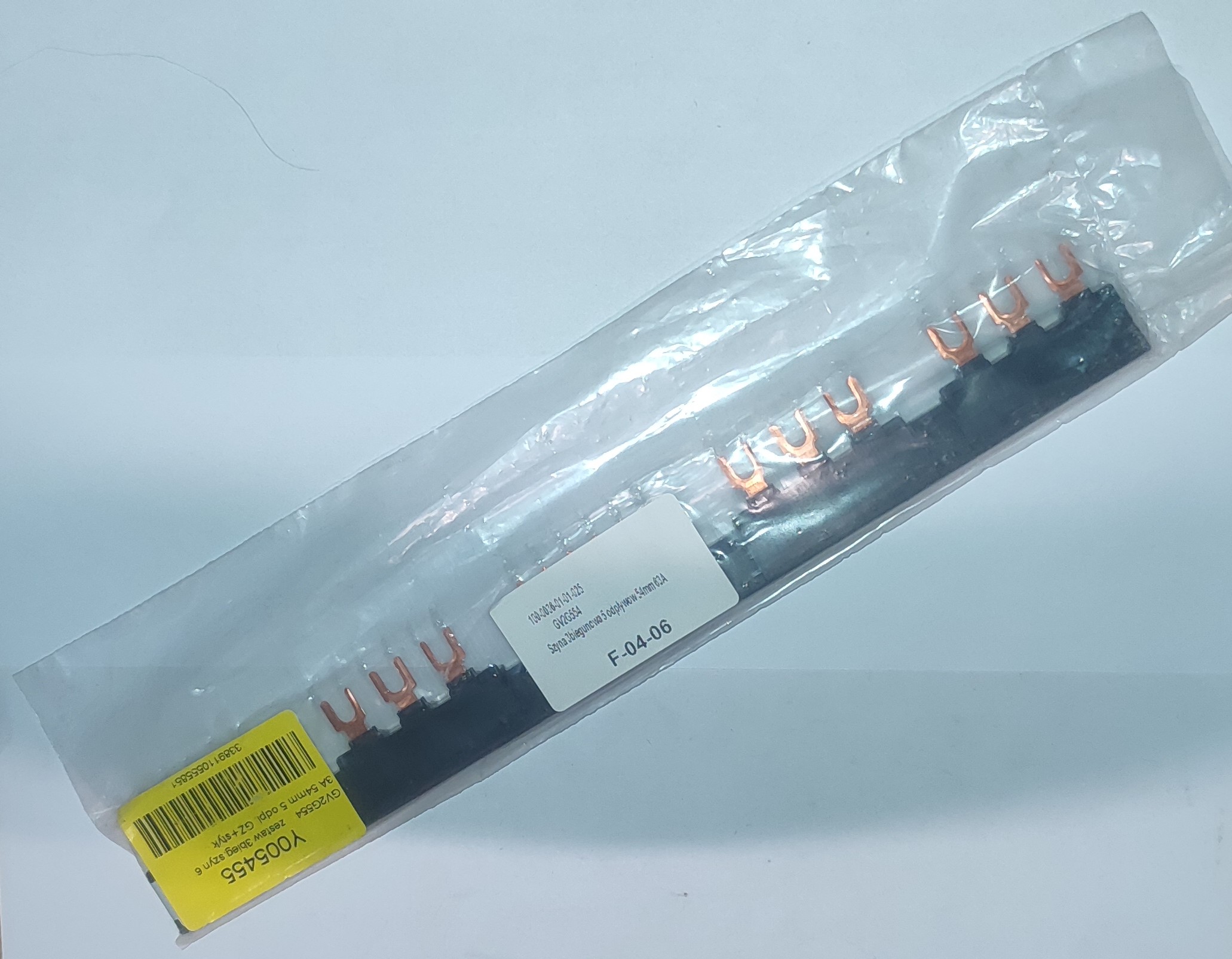

Schneider Electric GV2G554 Linergy FT, Comb busbar, 63A, 5 tap-offs, 54mm pitch
1 / 2
Reference Image - Not actual item!
Offer Description
GV2G554 Schneider Electric linergy ft - comb busbar - 63 a - 5 tap-offs - 54 mm pitch
Product Description
Active Mature
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 5 tap-off outlets for the paralleling of 5 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).
Product Details
- Country of Origin
- RO
- Part Number
- GV2G554
- Tariff Code
- 85369095
- EAN
- 3389110555851
- UNSPSC
- 39121521
≈
$10.85
excl. taxSupplier Price
€9.95
€11.06
Shipping from:
€25.00
1
Offer details
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 1 pc.In-StockUpdated at: 20-03-2025
- Warranty:
- 12 months
- Estimated Delivery:
- 25-27 March to United States
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Are you a Supplier?
Join 650 suppliers, sell to 3500+ verified buyers.
Policies and Information
Shipping Information
Return & Refund Policies
14 days for return
Secure Payment Process
Warranty Policies
Specifications
- Connection Pitch
- 54 mm
- Accessory / Separate Part Category
- connection accessory
- Product Or Component Type
- comb busbar
- [Ith] Conventional Free Air Thermal Current
- 63 A
- Product Name
- FT
- Range
- Linergy
- Poles Description
- 3P
- Number Of Tap-Offs
- 5
- Range Compatibility
- TeSys Deca || TeSys GV2 || TeSys K || TeSys U
- Device Short Name
- GV2G
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2207006
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
Complementary
- [Ui] Rated Insulation Voltage
- 690 V
- Length
- 260 mm
- Net Weight
- 0.1 kg
- Mounting Location
- on terminal
Contractual warranty
- Warranty
- 18 months
