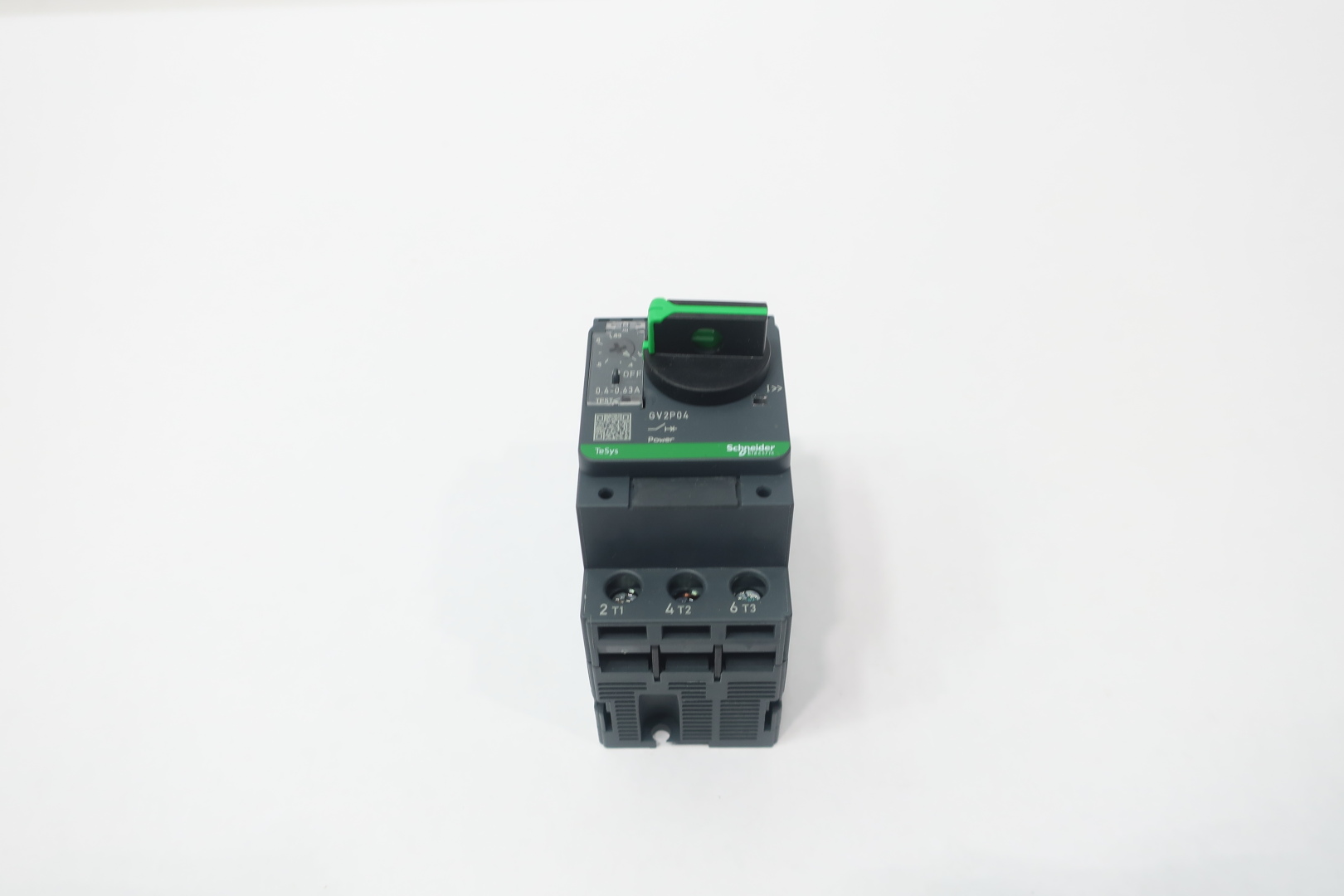

Schneider Electric GV2P04
TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, rotary handle, 0.4…0.63 A, screw clamp terminals
1 / 1
Manufacturer catalogue image
Product Description
Lifecycle Status:
The Schneider Electric TeSys GV motor circuit breaker is designed for 3-phase motor applications, offering a thermal-magnetic protection with a thermal setting range of 0.4-0.63A and magnetic tripping at 13xIn. This high breaking capacity Icu 100kA@400V ensures reliable operation in various environments. The circuit breaker is equipped with screw clamp terminals for easy connection, and the start-stop control can be managed using a rotary knob that guarantees 100 000 cycles AC-3.
This product adheres to multiple international standards including IEC, UL, CSA, CCC, EAC, Marine, and ATEX. It is also compliant with Green Premium standards (RoHS/REACh), ensuring environmental sustainability.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — United Kingdom, member since 2021- Availability:
- 2 pcs.In-StockUpdated at: 31-10-2025
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA
- Ik Degree Of Protection
- IK04
- Mechanical Robustness
- shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
- Ambient Air Temperature For Operation
- -20-60 °C
- Standards
- EN/IEC 60947-2 || EN/IEC 60947-4-1
- Climatic Withstand
- IACS E10
