Schneider Electric
GVAE1
1 / 6
Description
Active Mature

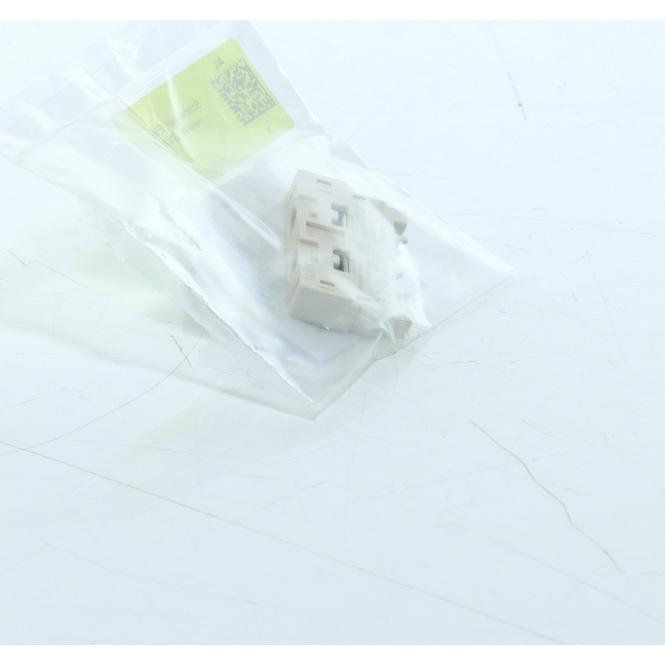

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO or 1NC instantaneous auxiliary contacts depending on the mounting orientation of the block. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).- Country of Origin
- CZ
- Part Number
- GVAE1
- Tariff Code
- 85365080
- EAN
- 3389110343427
- UNSPSC
- 39121522
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 2 pcs.In-StockUpdated at: 12-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Environment
- Product Certifications
- UKCA
- Environmental Characteristic
- normal environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2207006
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
Complementary
- Minimum Switching Current
- 5 mA
- Height
- 11 mm
- [Ith] Conventional Free Air Thermal Current
- 2.5 A
- [Ue] Rated Operational Voltage
- 24...240 V AC || 24...60 V DC
- Protection Type
- gG fuse 10 A || GB2CB06 circuit breaker 10 A
- Net Weight
- 0.02 kg
- [Ui] Rated Insulation Voltage
- 300 V UL 508 || 300 V CSA C22.2 No 14 || 250 V IEC 60947-1
- Minimum Switching Voltage
- 17 V
- Tightening Torque
- 1.4 N.m screw clamp terminals
- Rated Operational Power In Va
- 120 VA 110-120 V AC-15 100000 cycles || 120 VA 230-240 V AC-15 100000 cycles || 48 VA 24-24 V AC-15 100000 cycles || 60 VA 48-48 V AC-15 100000 cycles
- Mechanical Durability
- 100000 cycles
- Width
- 45 mm
- Depth
- 29 mm
- Rated Operational Power In W
- 15 W 48 V DC-13 100000 cycles || 24 W 24 V DC-13 100000 cycles || 9 W 60 V DC-13 100000 cycles
Specifications
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys || TeSys Deca
- Mounting Location
- front side
- Pole Contact Composition
- 1 NO/NC
- Quantity Per Set
- set of 10
- Product Compatibility
- GV2L || GV2P || GV2RT || GV3P || GV3L || GV2LE || GV2ME
- Device Short Name
- GVAE
