Schneider Electric GV4P115S
Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 100kA, thermal magnetic, Everlink terminals
1 / 1

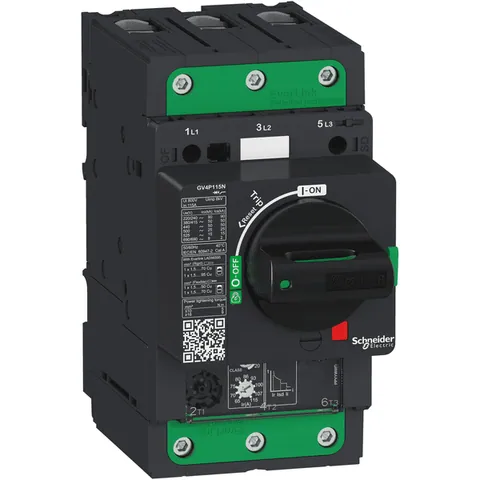

Manufacturer catalogue image
Product Description
Lifecycle Status:
The Schneider Electric TeSys GV4 motor circuit breaker is designed to provide reliable protection for 3-phase motors ranging from 37-55kW at 400V. It features thermal magnetic protection and additional motor protection functions, with a breaking capacity of Icu 100kA at 400V.
The circuit breaker offers start-stop control via a rotary handle and is equipped with Everlink BTR screw terminals for easy connection. Thermal protection can be adjusted by dials, with a setting current Ir in the range of 65-115A and a selectable tripping class of either 10 or 20.
The magnetic protection is set at 17 In, and additional protections include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, and ground fault protection. The circuit breaker also includes internal locations for auxiliary contact blocks (OF, SD) and voltage trip units (MN, MX).
This motor circuit breaker is multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), and Green Premium compliant (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- IEC || UL || CSA || CCC || EAC || ATEX || EU-RO MR
- Ik Degree Of Protection
- IK07 IEC 62262
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- CSA C22.2 No 60947-4-1 || UL 60947-4-1 || EN/IEC 60947-4-1 || EN/IEC 60947-2
- Climatic Withstand
- IACS E10
- Pollution Degree
- 3
