Schneider Electric
LA1DY20
- Condition:
- New Factory Sealed
- Available:
- 1 pc.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
€99.90
netSchneider Electric
LA1DY20
1 / 1
Description
Active Mature

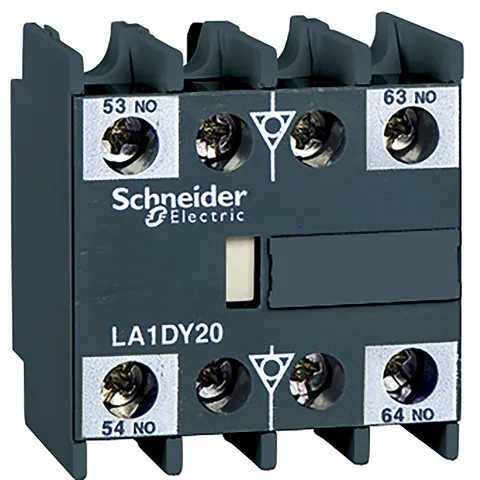

TeSys Deca instantaneous auxiliary contact block with dust and damp protected contacts, for LC1D contactors and CAD control relays in harsh industral environments. It provides 2NO protected contacts rated up to 0.1A 125V AC / 30V DC, 4 earth terminals for cable screen continuity, connection by screw clamp terminals. Very low minimum switching capacity (5V / 1mA) thanks to gold alloy contact material. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).- Country of Origin
- FR
- Part Number
- LA1DY20
- Tariff Code
- 85365080
- EAN
- 3389110236514
- UNSPSC
- 39121522
€90.30
net1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 1 pc.In-StockUpdated at: 21-11-2024
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
A total of 14 Parts In-Stock from 13 Distributors
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Available Offers (12)
Schneider Electric
LA1DY20
- Condition:
- New Factory Sealed
- Available:
- 1 pc.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
£101.76
netSchneider Electric
LA1DY20
- Condition:
- New Factory Sealed
- Available:
- 1 pc.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
€104.95
netSchneider Electric
LA1DY20
- Condition:
- New Factory Sealed
- Available:
- 1 pc.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
€118.10
netSchneider Electric
LA1DY20
- Condition:
- New Factory Sealed
- Available:
- 1 pc.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
€135.71
netSchneider Electric
LA1DY20
- Condition:
- New Factory Sealed
- Available:
- 1 pc.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
€146.32
netSchneider Electric
LA1DY20
- Condition:
- New Factory Sealed
- Available:
- 1 pc.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
449,55 zł
netSchneider Electric
LA1DY20
- Condition:
- New Factory Sealed
- Available:
- 2 pcs.In-StockUpdated at: 16-10-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
- Warranty:
- 24 months
1
Schneider Electric
LA1DY20
- Condition:
- New Factory Sealed
- Available:
- 1 pc.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
Schneider Electric
LA1DY20
- Condition:
- New Factory Sealed
- Available:
- 1 pc.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
Offer with manufacturer lead time
Ships in:On Request
Best price:
€26.69
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Ambient Air Temperature For Storage
- -25-70 °C
- Environmental Characteristic
- harsh environment
- Protective Treatment
- TH IEC 60068
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP110807EN_V3
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant
Complementary
- Minimum Switching Current
- 1 mA
- Height
- 48 mm
- Insulation Resistance
- > 10 MOhm
- Net Weight
- 0.04 kg
- Connections - Terminals
- screw clamp terminals 1 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-2.5 mm²flexible without cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible without cable end || screw clamp terminals 1 1-2.5 mm²rigid || screw clamp terminals 2 1-2.5 mm²rigid
- Minimum Switching Voltage
- 5 V
- Tightening Torque
- 1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2
- Mechanical Durability
- 5 Mcycles
- Quantity Per Set
- set of 2
- Width
- 44 mm
- Depth
- 39 mm
Specifications
- Product Certifications
- CB || UL || CSA || CCC || EAC || UKCA
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5
- [Ue] Rated Operational Voltage
- 125 V AC protected contact || 30 V DC protected contact
- Range Compatibility
- TeSys D CAD || TeSys D LC1D || TeSys F LC1F || TeSys F CR1F || TeSys Deca CAD || TeSys Deca LC1D
- Product Or Component Type
- auxiliary contact block
- Product Name
- TeSys Deca
- Range
- TeSys
- Mounting Location
- front
- Pole Contact Composition
- 2 earth screen continuity poles || 2 NO (sealed)
- [Ui] Rated Insulation Voltage
- 250 V IEC 60947-5-1
- [Ie] Rated Operational Current
- 0.1 A
- Auxiliary Contacts Operation
- instantaneous
- Device Short Name
- LA1
