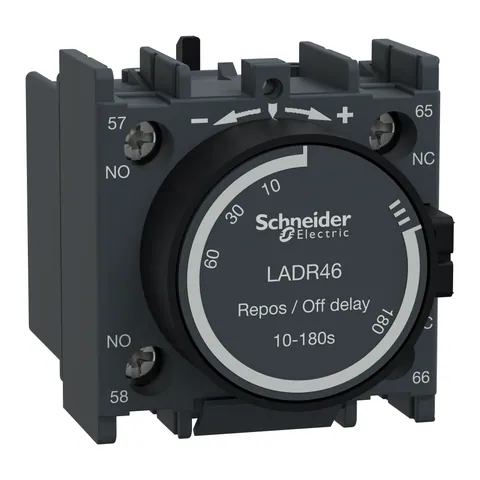

LADR46

Environment

Ambient Air Temperature For Operation

-40-70 °C

Ip Degree Of Protection

IP20 conforming to IEC 60529

Ambient Air Temperature For Storage

-60-80 °C

Environmental Characteristic

normal environment

Protective Treatment

TH IEC 60068

Operating Altitude

9842.52 ft (3000 m)

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP110702

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: Cancer - www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

N/A

Eu Rohs Directive

Compliant with Exemptions

Complementary

Non-Overlap Time

1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact

Permissible Short-Time Rating

100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms

Minimum Switching Current

5 mA

Height

48 mm

Protection Type

gG fuse 10 A

Insulation Resistance

> 10 MOhm

Irms Rated Making Capacity

140 A AC || 250 A DC

Connections - Terminals

lugs-ring terminals 8 mm)

Minimum Switching Voltage

17 V

Tightening Torque

1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2

Mechanical Durability

5 Mcycles

Color

dark grey

Width

44 mm

Depth

61 mm

Specifications

Product Certifications

IECEE CB Scheme || UL || CSA || CCC || UKCA

[Ith] Conventional Free Air Thermal Current

10 A (at 60 °C)

Standards

UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5 || EN/IEC 60947-5-1

Timer Type

off delay

[Ue] Rated Operational Voltage

690 V AC 25...400 Hz

Range Compatibility

TeSys D CAD || TeSys D LC1D || TeSys F LC1F || TeSys F CR1F || TeSys Deca CAD || TeSys Deca LC1D

Product Or Component Type

time delay auxiliary contact block

Product Name

TeSys Deca

Range

TeSys || TeSys Deca

Mounting Location

front

Pole Contact Composition

1 NO + 1 NC

[Ui] Rated Insulation Voltage

690 V IEC 60947-5-1 || 600 V UL 60947-5-1 || 600 V CSA C22.2 No 60947-5-1

[Ie] Rated Operational Current

6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13

Time Delay Range

10...180 s

Auxiliary Contacts Operation

time delay
