Schneider Electric CAD326K7
TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 100 V AC standard coil
1 / 1

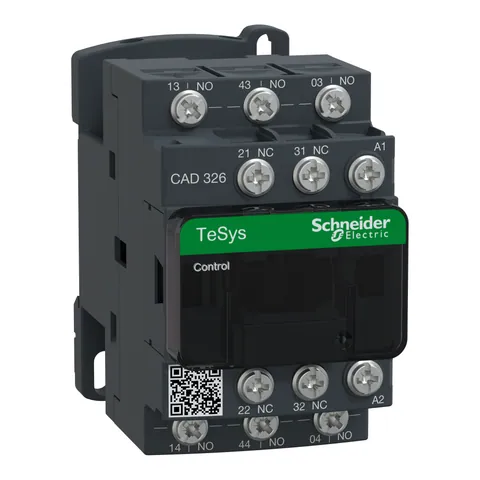

Manufacturer catalogue image
Product Description
Lifecycle Status:
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 100V AC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Ambient Air Temperature For Operation
- -40-60 °C || 60-70 °C with derating
- Standards
- EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
- Ambient Air Temperature For Storage
- -60-80 °C
- Protective Treatment
- TH IEC 60068
- Ip Degree Of Protection
- IP2X front face VDE 0106
