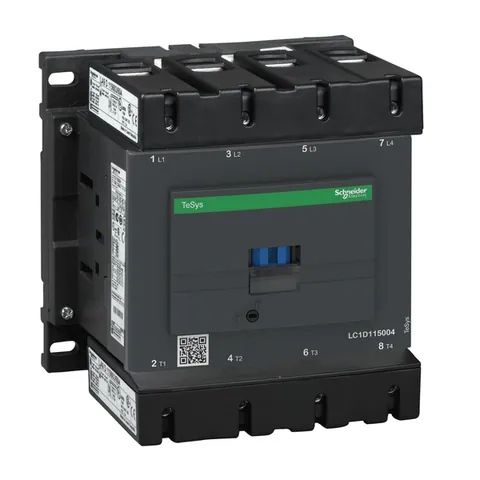

LC1D115004G6

Environment

Product Certifications

GOST || RINA || UL || BV || GL || CCC || LROS (Lloyds register of shipping) || CSA || DNV || UKCA

Height

158 mm

Standards

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508

Climatic Withstand

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Net Weight

2.86 kg

Flame Retardance

V1 conforming to UL 94

Protective Treatment

THIEC 60068-2-30

Ip Degree Of Protection

IP20 front face IEC 60529

Mechanical Robustness

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 6 Gn for 11 ms)

Operating Altitude

0...9842.52 ft (0...3000 m)

Fire Resistance

850 °C IEC 60695-2-1

Width

150 mm

Depth

132 mm

Permissible Ambient Air Temperature Around The Device

-40-60 °C || 60-70 °C with derating

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP060301EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI100405

Eu Rohs Directive

Compliant with Exemptions

Complementary

Power Dissipation Per Pole

24 W AC-1

Average Impedance

0.6 mOhm - Ith 200 A 50 Hz for power circuit

[Ith] Conventional Free Air Thermal Current

200 A (at 60 °C) for power circuit

Control Circuit Voltage Limits

0.85...1.1 Uc -40-55 °C operational AC 60 Hz || 0.3...0.6 Uc -40-70 °C drop-out AC 60 Hz || 1...1.1 Uc 55-70 °C operational AC 60 Hz

Mounting Support

rail || plate

Contact Compatibility

M14

Control Circuit Type

AC 60 Hz

Safety Reliability Level

B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1

Pollution Degree

3

Rated Breaking Capacity

1100 A at 440 V for power circuit conforming to IEC 60947

Irms Rated Making Capacity

1260 A at 440 V for power circuit conforming to IEC 60947

Associated Fuse Rating

250 A gG at <= 690 V coordination type 1 for power circuit || 200 A gG at <= 690 V coordination type 2 for power circuit

[Uimp] Rated Impulse Withstand Voltage

8 kV IEC 60947

Inrush Power In Va

300-300 VA 60 Hz cos phi 0.8 (at 20 °C)

Pole Contact Composition

4 NO

Connections - Terminals

control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end || power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end || power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end || power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end || power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end || power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end || power circuit: connector 2 10-50 mm² - cable stiffness: solid without cable end

Coil Technology

without built-in suppressor module

Operating Time

6...20 ms opening || 20...50 ms closing

Maximum Operating Rate

2400 cyc/h 60 °C

Tightening Torque

control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector hexagonal 4 mm || control circuit 1.2 N.m screw clamp terminals pozidriv No 2

Electrical Durability

0.8 Mcycles 200 A AC-1 <= 440 V

Mechanical Durability

8 Mcycles

Compatibility Code

LC1D

Hold-In Power Consumption In Va

22-22 VA 60 Hz cos phi 0.3 (at 20 °C)

Overvoltage Category

III

[Ui] Rated Insulation Voltage

power circuit 600 V CSA || power circuit 600 V UL || power circuit 1000 V IEC 60947-4-1

[Icw] Rated Short-Time Withstand Current

250 A 40 °C - 10 min for power circuit || 550 A 40 °C - 1 min for power circuit || 950 A 40 °C - 10 s for power circuit || 1100 A 40 °C - 1 s for power circuit

Heat Dissipation

3-8 W at 60 Hz

Protective Cover

with

Specifications

[Uc] Control Circuit Voltage

120 V AC 60 Hz

[Ue] Rated Operational Voltage

power circuit <= 1000 V AC 25...400 Hz || power circuit <= 460 V DC

Range Of Product

TeSys Deca

Contactor Application

resistive load

Product Or Component Type

contactor

Range

TeSys

Utilisation Category

AC-1 || AC-3 || AC-3e || AC-4

[Ie] Rated Operational Current

200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

Poles Description

4P

Device Short Name

LC1D
