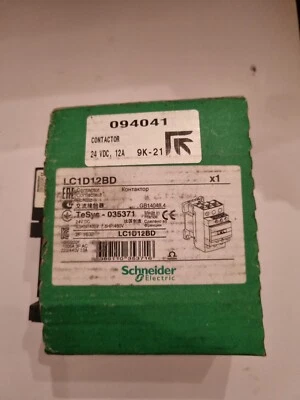

Schneider Electric LC1D12BD

The TeSys Deca contactor is a high-performance solution designed to meet the needs of diverse industrial applications. It offers a wide range of contactor ratings, making it suitable for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.

This specific model is a 12A inductive 3 pole IEC contactor, capable of being mounted on DIN rail or directly onto a panel. It boasts both Horsepower and Kw motor rating for international acceptance, with ratings including 3HP at 200-208VAC, 3HP at 240VAC, 7.5HP at 480VAC, and 10HP at 600VAC three phase.

The contactor is equipped with a 24 VDC coil with transient suppressor module and features one normally open and one normally closed auxiliary contact as standard. It also comes with screw clamp terminals for load and auxiliary connections, ensuring easy integration into your system.

With its compact size of 3.03 inches tall, 1.77 inches wide, and 3.74 inches deep, weighing just 1.07 lbs, this contactor is designed for versatility and ease of use. It is certified to UL, CSA, IEC, CCC, EAC, and Marine standards, making it a reliable choice for various applications.

Moreover, its compliance with RoHS/REACh standards makes it an environmentally friendly option, contributing to sustainable practices in your industrial setup.
