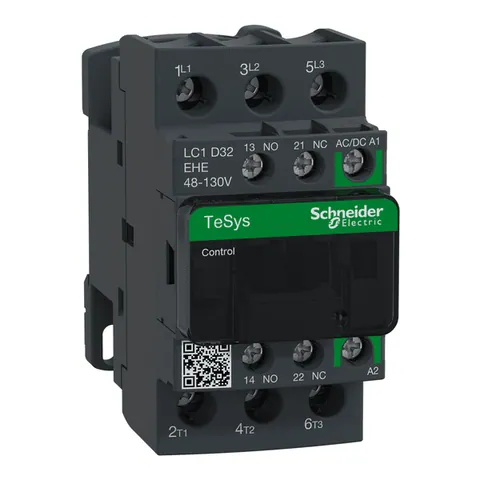

Schneider Electric LC1D32EHE
IEC Contact Relay, TeSys Deca Green, Non-Reversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 Phase
Product Description
The TeSys Deca Green contact relay offers perfect compatibility with diverse control systems, making it an excellent choice for creating motor starters across a wide range of applications.
This 32A inductive 3-phase IEC contactor is designed for both DIN rail and panel mounting. It's equipped with electronic coils that operate at a wide band voltage of 48-130V, compatible with both AC/DC power sources and characterized by low energy consumption.
The contact relay boasts a high short circuit current rating (SCCR) of up to 100kA when used with a 600VAC 80A Class J or CC fuse. It's also certified to UL, CSA, IEC, CCC, EAC, and Marine standards, making it compliant with RoHS/REACh regulations, thereby qualifying it as a Green Premium product.
With its one normally open and one normally closed auxiliary contact built-in as standard, the NC contact is mirror certified. The screw clamp terminals facilitate easy load and auxiliary connections. An extensive line of accessories ensures that most application requirements are met.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Romania, member since 2023, 1–4 employees
- Availability:
- On requestLead time: 21 days
- Warranty:
- Not specified
- Condition:
- New Surplus
Specifications
- Brand
- Schneider Electric
- Product Certifications
- CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Climatic Withstand
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Flame Retardance
- V1 conforming to UL 94
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 8 Gn for 11 ms)
Available Offers
(3)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Surplus | Availability On requestLead time: 21 days | Supplier RomaniaTrusted supplier — member since 2023, 1–4 employees | Warranty Not specified | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier GermanyTrusted supplier — member since 2024 | Warranty Not specified | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Germany
ItalyOffer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Schneider Electric LC1D32EHE, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 05-10-2026
