Schneider Electric LC1D80AN7
IEC Contactor, TeSys Deca, Non-Reversing, 80A, 40HP at 480VAC, 3 Phase, 3 Pole, 3 NO, 415VAC 50/60Hz Coil, Open Style
1 / 2

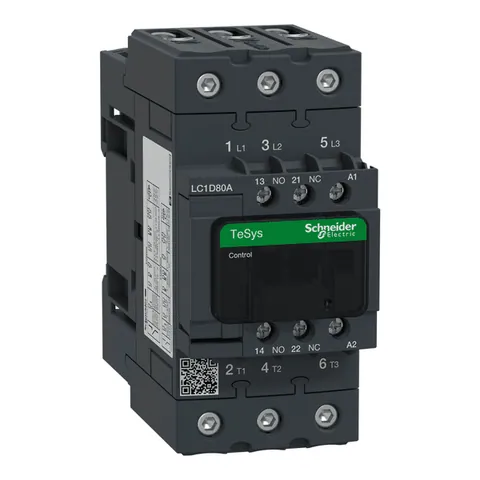

Manufacturer catalogue image
Product Description
Lifecycle Status:
The TeSys D contactor is engineered for integration into various control systems, enabling the creation of motor starters for diverse applications. This model, specifically rated at 80A, is capable of handling inductive loads in three-phase configurations, providing a maximum horsepower of 40 at 480VAC. It also supports resistive loads up to 200A.
Designed for flexible mounting options, the contactor can be installed on DIN rails or directly onto panels. Its dimensions are 122mm in height, 55mm in width, and 120mm in depth, with a weight of 0.86kg. The device is equipped with a 415VAC 50/60Hz coil and features one normally open (NO) and one normally closed (NC) auxiliary contact as standard, with the NC contact being mirror certified.
This contactor meets stringent international standards such as UL, CSA, and IEC, and is recognized for its environmentally friendly design, aligning with RoHS and REACh regulations, thus categorizing it as a Green Premium product. Its extensive accessory line allows for adaptability to most operational requirements.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping)
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Climatic Withstand
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Flame Retardance
- V1 conforming to UL 94
- Protective Treatment
- THIEC 60068-2-30
- Ip Degree Of Protection
- IP20 front face IEC 60529
