Schneider Electric LC1DT25P7
IEC Contact Relay, TeSys Deca, Non-Reversing, 25A Resistive, 4 Poles, 4 NO, 230VAC 50/60Hz Coil, Open Style
1 / 1

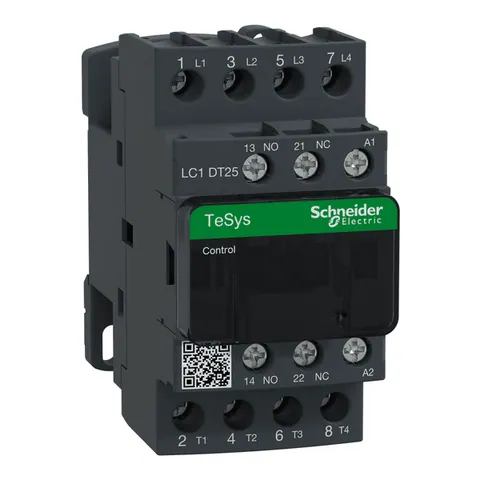

Manufacturer catalogue image
Product Description
Lifecycle Status:
The TeSys D Contact Relay is an integral component in control systems, offering versatility for a wide range of applications. It's available in multiple contactor ratings, accommodating both inductive motor loads up to 150 full-load amps and resistive loads up to 200 amps.
This 4 pole IEC Contact Relay can be mounted on DIN rail or directly on a panel. It features four normally open power contacts with a 25A resistive load rating. The contactor is equipped with a 230VAC 50/60Hz coil and comes standard with one normally open and one normally closed auxiliary contact.
The NC contact is mirror certified, and screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories ensures compatibility with most applications. The contactor measures 3.35 inches in height, 1.77 inches in width, and 3.62 inches in depth, weighing 0.80 lbs.
Certified to UL, CSA, IEC, CCC, EAC, and Marine standards, this contactor also meets RoHS/REACh requirements, making it a Green Premium product.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — United Kingdom, member since 2021
- Availability:
- 18 pcs.In-StockUpdated at: 31-10-2025
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- UL || BV || CCC || LROS (Lloyds register of shipping) || DNV || CSA || RINA || GOST || GL
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Climatic Withstand
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Flame Retardance
- V1 conforming to UL 94
- Protective Treatment
- THIEC 60068-2-30
- Ip Degree Of Protection
- IP20 front face IEC 60529
