Schneider Electric
LC1SK0600B7
- Condition:
- New Factory Sealed
- Available:
- 13 pcs.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
LC1SK0600B7
1 / 1
Description
Active Mature

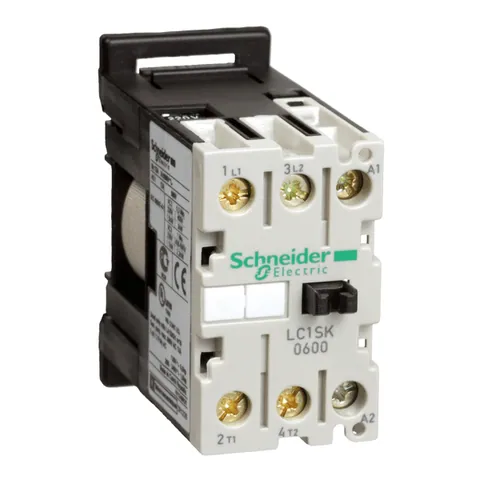

TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 24V 50/60Hz AC control circuit, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).- Country of Origin
- CZ
- Part Number
- LC1SK0600B7
- Tariff Code
- 85364190
- EAN
- 3389110563849
- UNSPSC
- 39121529
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 4 pcs.In-StockUpdated at: 21-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
A total of 17 Parts In-Stock from 2 Distributors
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Available Offers (1)
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Height
- 56 mm
- Net Weight
- 0.132 kg
- Ambient Air Temperature For Storage
- -50-70 °C
- Protective Treatment
- TC IEC 60068 || TC DIN 50015
- Ip Degree Of Protection
- IP2X VDE 0106
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Width
- 27 mm
- Depth
- 55.5 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1503003EN
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- Product Certifications
- CB Scheme || CE || UKCA || EAC || cULus
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Average Impedance
- 4 mOhm - Ith 12 A 50 Hz
- Control Circuit Voltage Limits
- operational: 0.85...1.1 Uc (at <50 °C) || drop-out: 0.2...0.75 Uc (at <50 °C)
- [Ith] Conventional Free Air Thermal Current
- 12 A (at 55 °C) for power circuit
- Standards
- EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Mounting Support
- rail
- Control Circuit Type
- AC 50/60 Hz
- Rated Breaking Capacity
- 52 A at <= 400 V for power circuit conforming to NF C 63-110 || 52 A at <= 400 V for power circuit conforming to IEC 60947
- Irms Rated Making Capacity
- 66 A at 690 V AC conforming to IEC 60947 || 66 A at 690 V AC conforming to NF C 63-110
- Associated Fuse Rating
- 16 A gI at <= 440 V for power circuit conforming to IEC 60947
- Inrush Power In Va
- 16-16 VA (at 20 °C)
- Connections - Terminals
- power circuit connector 1 0.35-6 mm²flexible with cable end || power circuit connector 1 0.5-6 mm²flexible without cable end || power circuit connector 1 1.5-6 mm²solid || power circuit connector 2 0.35-1.5 mm²flexible with cable end || power circuit connector 2 0.35-2.5 mm²flexible without cable end || power circuit connector 2 1.5-4 mm²solid
- Maximum Operating Rate
- 1200 cyc/h
- Tightening Torque
- 0.8 N.m connector pozidriv No 1
- Mechanical Durability
- 10 Mcycles
- Hold-In Power Consumption In Va
- 4.2-4.2 VA (at 20 °C)
- Operating Time
- 6...8 ms coil de-energisation and NO opening || 7...14 ms coil energisation and NO closing
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947 || 690 V VDE 0110 group C || 690 V BS 5424 || 690 V UL 508 || 690 V CSA C22.2 No 14
- [Icw] Rated Short-Time Withstand Current
- 50 A 55 °C for power circuit
- Heat Dissipation
- 1.4-1.4 W 50/60 Hz
Specifications
- [Ue] Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz
- Contactor Application
- resistive load || motor control
- Product Or Component Type
- mini contactor
- Product Name
- TeSys SK
- Range
- TeSys
- Pole Contact Composition
- 2 NO
- Utilisation Category
- AC-1 || AC-3
- [Ie] Rated Operational Current
- 6 A at <= 440 V AC AC-3 || 12 A (at <55 °C) AC AC-1
- Poles Description
- 2P
- Device Short Name
- LC1SK
