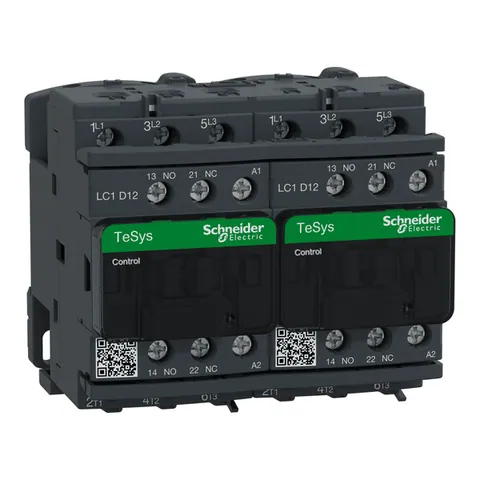

Schneider Electric LC2D12G7

The reversing contactor is designed for integration into control systems, enabling motor starters for various applications. With a rated operational current of 12 A at 440 V AC in AC-3 utilization category and a maximum horsepower rating of 7.5 hp at 460/480 V AC, this unit efficiently handles motor control tasks.

It features a compact design, measuring 77 mm in height, 90 mm in width, and 86 mm in depth, while weighing 0.697 kg. The product operates within an ambient temperature range of -40 to 60 °C, and up to 70 °C with derating, ensuring reliable performance across varied environments. The contactor is capable of withstanding mechanical vibrations and shocks, rated for 10 Gn when open and 15 Gn when closed.

Certified by multiple standards, including UL, CSA, and IEC, this contactor meets stringent safety and operational guidelines. The device is equipped with screw clamp terminals for easy connections and has a minimum switching current of 5 mA for signaling circuits. It is compliant with environmental regulations, including RoHS and REACh, enhancing its sustainability profile.
