Schneider Electric LP1D40008GD

Name: IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 2 NO and 2 NC, 125VDC coil, open style
Brand: Schneider Electric
SKU: LP1D40008GD

IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 2 NO and 2 NC, 125VDC coil, open style

1 / 1

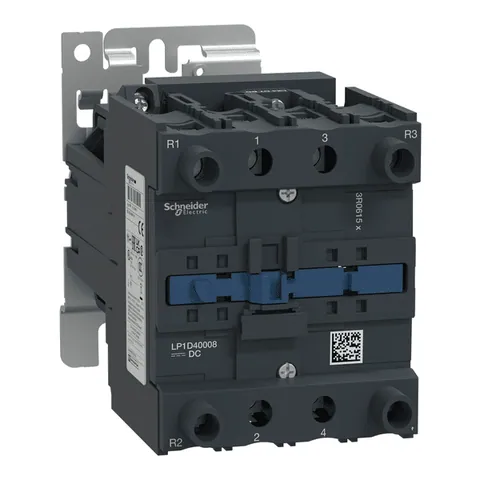

Manufacturer catalogue image

Product Description

Lifecycle Status:

The Schneider Electric TeSys D Nonreversing IEC Contactor is designed for seamless integration into control systems. It can be used to create motor starters for a wide range of applications. The contactor is available in 13 different ratings, catering to inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.

This 4 pole IEC contactor can be mounted on DIN rail or directly on a panel. It features two normally open and two normally closed power contacts, each with a 60A resistive load rating. The contactor is supplied with a 125VDC coil equipped with a transient suppressor module.

The contactor's screw clamp terminals facilitate easy connection of load and auxiliary components. A comprehensive range of accessories ensures that the contactor can meet the demands of most applications. The contactor measures 5.00 inches in height, 3.35 inches in width, and 7.17 inches in depth, weighing approximately 4.87 lbs.

The Schneider Electric TeSys D Nonreversing IEC Contactor is certified to UL, CSA, IEC, CCC, EAC, and Marine standards, making it a reliable choice for various environments. It also meets the RoHS/REACh requirements, positioning it as a Green Premium product.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Product Certifications: UL || CSA || CCC || EAC || UKCA || CB || DNV-GL || RINA || BV || LROS (Lloyds register of shipping)
Standards: CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
Flame Retardance: V1 conforming to UL 94
Ip Degree Of Protection: IP20 front face IEC 60529
Mechanical Robustness: shocks contactor open 8 Gn for 11 ms) || shocks contactor closed 10 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)
Operating Altitude: 0...9842.52 ft (0...3000 m)

Available Offers

(3)

Schneider Electric

Available:: 0 pcs.
On Request
Updated at: 11-09-2026

Offer from:: Trusted supplier — Germany, member since 2024

Send Inquiry

Schneider Electric

Available:: 0 pcs.
On Request
Updated at: 14-09-2026

Offer from:: Trusted supplier — Italy, member since 2021, 10–19 employees
Warranty:: 12 months

Send Inquiry

Access our platform to find more offers

Compare offers globally
Direct supplier contact
RFQs, Quotes, and Orders
BOM Search

Sign UpFree 14-day trial available

Offer with manufacturer lead time

Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.

Get Quote

Documents

Data Sheet

Datasheet for Schneider Electric LP1D40008GD, including specifications and features.

Download Data Sheet

TraceParts

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model

Compatible Products

LA4DC3U

Schneider Electric

This diodes protection module is designed to safeguard the TeSys Deca contactors, ensuring no transient overvoltage in 24-250V DC control circuit voltage.

LAD9ET1S

Schneider Electric

TeSys D safety protective cover, for preventing access to the moving contact carrier

LADN02

Schneider Electric

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD

LADN04

Schneider Electric

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD

LADN11

Schneider Electric

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD

LADN13

Schneider Electric

Schneider Electric's TeSys Deca auxiliary contact block offers 1NO+3NC instantaneous contacts rated up to 10A 690V AC. It is suitable for safety applications and can be easily mounted on front by clip-on.

LADN20

Schneider Electric

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD

LADN22

Schneider Electric

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD

LADN31

Schneider Electric

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD

LADN40

Schneider Electric

The TeSys Deca auxiliary contact block provides four normally open (NO) contacts for integration into control circuits with LC1D09 to LC1D150 contactors.
