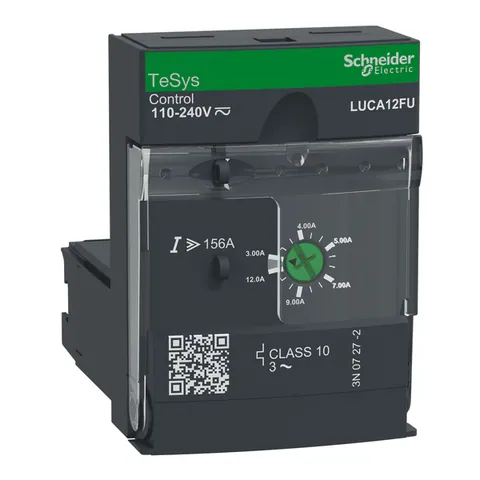

Schneider Electric LUCA12FU
TeSys Ultra Standard Control Unit
1 / 1
Manufacturer catalogue image
Product Description
Lifecycle Status:
The TeSys Ultra Standard Control Unit is designed to be integrated with power bases LUB12, LUB32, and LUB38, forming a comprehensive TeSys U starter controller for three-phase motor applications. This control unit offers full protection to motors with adjustable rated current from 3A to 12A, overload tripping class 10, short circuit at 13 times the maximum current, and overcurrent at 14.2 times the rated current. It also provides protection against phase loss and insulation faults (equipment protection only).
This control unit is compatible with a 110-240V AC or 110-220V DC voltage for controlling the starter through its A1/A2 control terminals located in the power base. It has been certified when used in conjunction with LUB power bases (IEC, UL, CSA, CCC, EAC, Marine), and it complies with Green Premium standards (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — United Kingdom, member since 2021
- Availability:
- 3 pcs.In-StockUpdated at: 31-10-2025
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Ambient Air Temperature For Operation
- -25-70 °C
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Non-Dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Immunity To Microbreaks
- 3 ms
