Schneider Electric
LV429407
1 / 2
Description
Active Mature

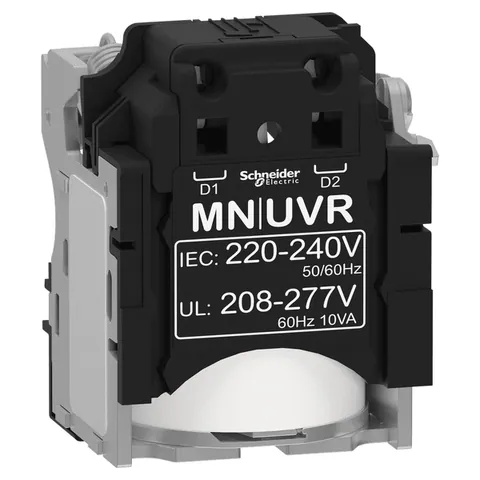

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.- Country of Origin
- PL
- Part Number
- LV429407
- Tariff Code
- 85363010
- EAN
- 3606480018961
- UNSPSC
- 39121601
Payment methods:
- Best offer from:
- Trusted Automa.Net Supplier
- Availability:
- 2 pcs.In-StockUpdated at: 12-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2304023EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
Specifications
- [Uc] Control Circuit Voltage
- 220...240 V AC 50/60 Hz || 208...277 V AC 60 Hz
- Range Of Product
- ComPact NSX100...250 || ComPacT NSX100...250 new generation || ComPact NSX400...630 || ComPacT NSX400...630 new generation || ComPact NSX100...250 DC || ComPacT NSX100...250 DC new generation || ComPact NSX100...250 DC PV || ComPacT NSX100...250 DC PV new generation || ComPact NSX400...630 DC || ComPacT NSX400...630 DC new generation || ComPact NSX400...630 DC PV || ComPacT NSX400...630 DC PV new generation
- Range Compatibility
- ComPacT new generation ComPacT NSX new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact ComPact NSX || ComPact ComPact NSX DC || EasyPact EasyPact CVS || PowerPact PowerPact Multistandard
- Product Or Component Type
- voltage release
- Range
- ComPacT
- Voltage Release Type
- opening coil || undervoltage release
- Device Application
- control
- Device Short Name
- MN
Complementary
- Supply Holding Power
- 5 VA
- Auxiliary Connection Terminal
- spring 0.5-1.5 mm² AWG 20...AWG 16)
- Supply Inrush Power
- 10 VA
- Wire Stripping Length
- 7 mm
- Response Time
- 50 ms
- Threshold Tripping Voltage
- 0.35...0.7 x Un opening || 0.85 x Un closing
Contractual warranty
- Warranty
- 18 months
