Schneider Electric LV429650

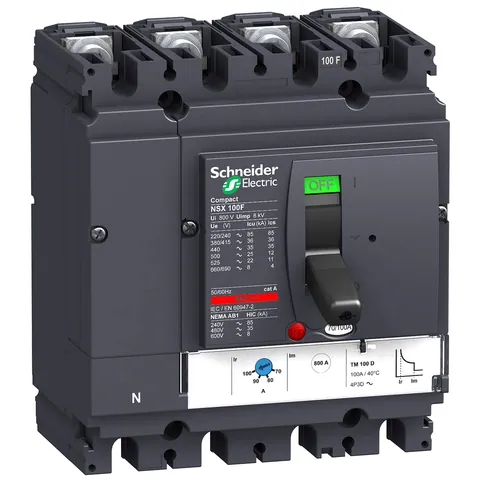

Circuit breaker, ComPact NSX100F, 36kA/415VAC, TMD trip unit 100A, 4 poles 4d
1 / 1
Manufacturer catalogue image
Product Description
Lifecycle Status:Successor:
This Compact NSX100F is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 100A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100F is part of Schneider Electric EcoStruxure Power architecture.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Poland, member since 2021, 50–99 employees- Availability:
- 2 pcs.In-StockUpdated at: 05-09-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Network Frequency
- 50/60 Hz
- Line Rated Current
- 100 A 40 °C
- Trip Unit Name
- TM-D
- Range Of Product
- ComPact NSX100...250
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Trip Unit Protection Functions
- LI
