Schneider Electric LV847130
Circuit Breaker Frame, MasterPact MTZ1 10H1, 1000A, 42kA/440VAC 50/60Hz, 3P, Fixed, Without Control Unit
1 / 1

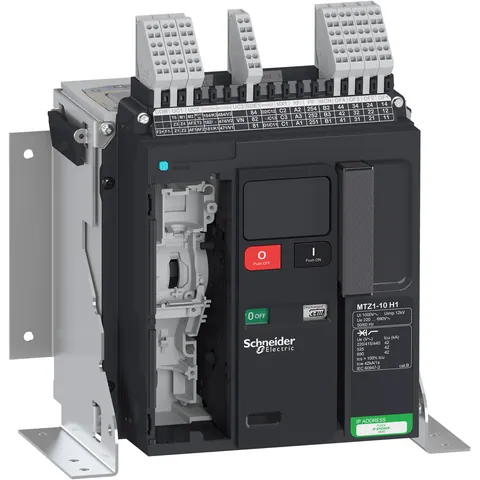

Manufacturer catalogue image
Product Description
The MasterPact MTZ1 10H1 serves as a foundation for a three-pole fixed circuit breaker, capable of handling a rated current of 1000A. It operates at a maximum voltage of 690VAC with a frequency of 50/60Hz and features a breaking capacity (Icu) of 42kA at 415VAC within the same frequency range. This circuit breaker is pivotal in safeguarding electrical systems against overloads, short circuits, and ground faults.
With dimensions of 276mm in width, 301mm in height, and 209mm in depth, the device is engineered for fixed mounting and is compatible with the MicroLogic X control unit, which must be acquired separately. When integrated, this control unit enhances safety and energy efficiency, allowing for a range of optional features and accessories.
The MasterPact MTZ1 is designed in accordance with international standards, including IEC/EN 60947-1 and IEC/EN 60947-2, ensuring its reliability and compliance in various applications. It is also suitable for installation within EcoStruxure architecture systems, contributing to a sustainable operational environment.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Breaking Capacity Code
- H1
- Product Or Component Type
- circuit breaker
- Product Name
- MasterPact MTZ1
- Range
- Masterpact
