Schneider Electric LV848044
Circuit Breaker Frame, MasterPact MTZ2 16H2, 1600A, 100kA/440VAC 50/60Hz, 3P, Fixed, Without Control Unit
1 / 1

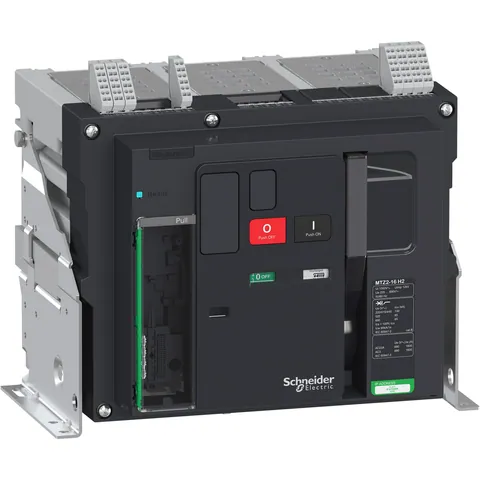

Manufacturer catalogue image
Product Description
The MasterPact MTZ2 16H2 serves as a basic frame for a 3-pole fixed circuit breaker, designed to safeguard electrical systems from overloads, short circuits, and ground faults. With a rated current of 1600A, it operates effectively at a maximum voltage of 690VAC across 50/60Hz networks. This circuit breaker features a breaking capacity (Icu) of 100kA at 440VAC, ensuring reliable operation under fault conditions.
The frame is built to be compatible with various MicroLogic control units, which enhance its functionality and allow for customization with optional features and accessories. The dimensions of the unit are 422mm in width, 352mm in height, and 300mm in depth. Compliance with international standards, including IEC/EN 60947-1 and IEC/EN 60947-2, ensures that the MasterPact MTZ2 meets rigorous safety and performance criteria.
With a mechanical durability rated at 25,000 cycles, this circuit breaker is designed for prolonged use, making it suitable for various applications in power distribution systems. The unit also adheres to environmental standards, including RoHS compliance and a green premium product status, emphasizing its sustainable design.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Breaking Capacity Code
- H2
- Product Or Component Type
- circuit breaker
- Product Name
- MasterPact MTZ2
- Range
- Masterpact
