Schneider Electric LV847150
Circuit breaker frame, MasterPact MTZ1 16H1, 1600A, 42kA/440VAC 50/60Hz, 3P, fixed
1 / 1

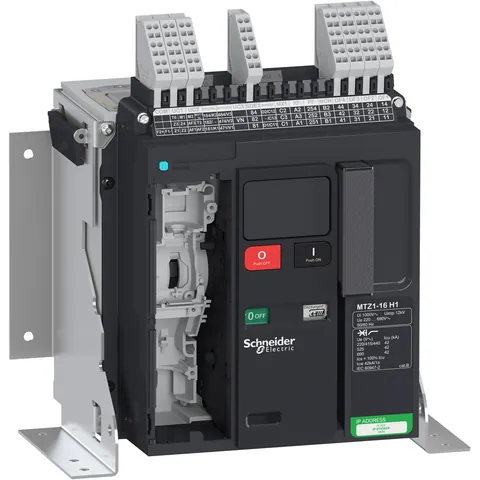

Manufacturer catalogue image
Product Description
The fixed frame for the MasterPact MTZ1 16H1 circuit breaker is tailored for three-pole configurations, providing essential protection for electrical systems against overloads and short circuits. With a rated current of 1600A and a maximum operational voltage of 690VAC at 50/60Hz, it is built to handle significant electrical loads.
This model features a breaking capacity (Icu) of 42kA at voltages up to 440VAC, making it suitable for applications requiring enhanced safety measures. The frame is compatible with the MicroLogic X control unit, which must be purchased separately, allowing for advanced monitoring and control functionalities.
Dimensions are 276mm (W) x 301mm (H) x 209mm (D), and it adheres to international standards such as IEC/EN 60947-1 and IEC/EN 60947-2. The MasterPact MTZ1 is applicable in EcoStruxure architecture systems, emphasizing its role in modern electrical distribution.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Breaking Capacity Code
- H1
- Product Or Component Type
- circuit breaker
- Product Name
- MasterPact MTZ1
- Range
- Masterpact
