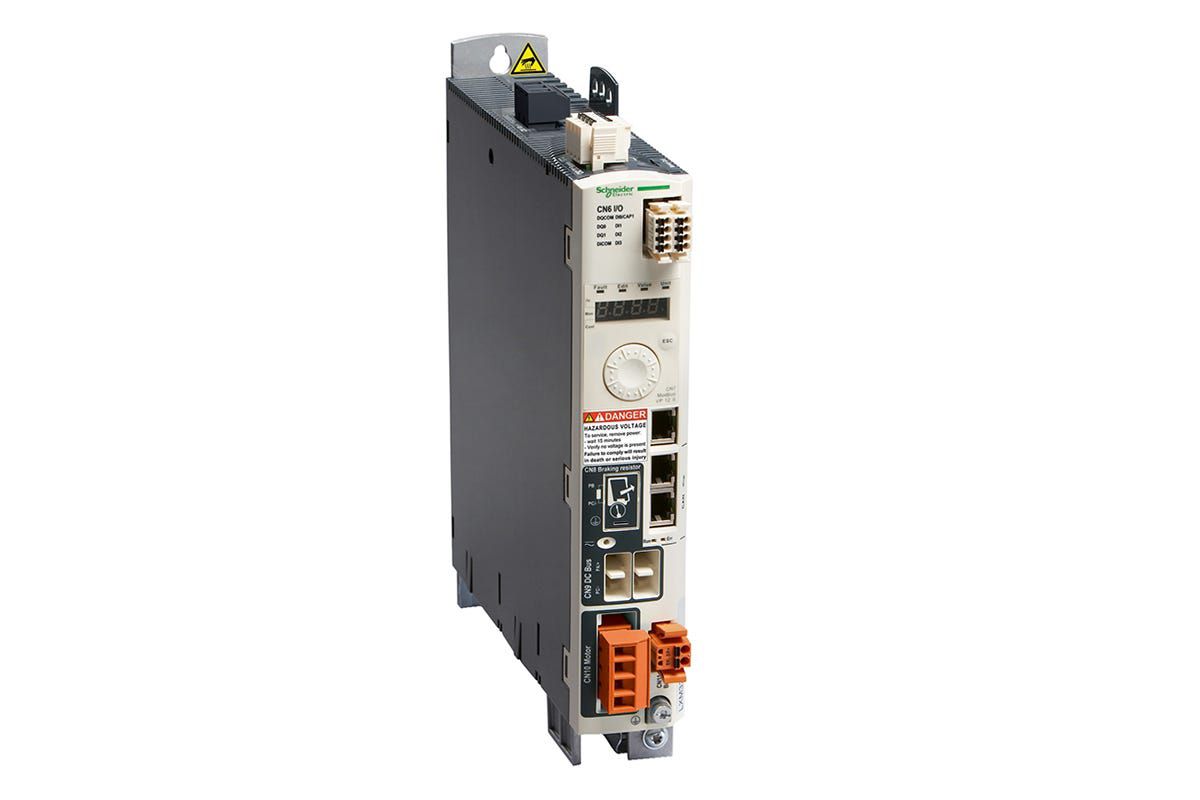

LXM32AU90M2

Environment

Product Certifications

UL || CSA || TÜV

Ambient Air Temperature For Operation

0-50 °C UL

Standards

EN/IEC 61800-3 || EN/IEC 61800-5-1

Shock Resistance

15 gn 11 ms EN/IEC 60028-2-27

Environmental Characteristic

classes 3C1 IEC 60721-3-3

Vibration Resistance

1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6

Electromagnetic Compatibility

conducted EMC, class A group 1 EN 55011 || conducted EMC, class A group 2 EN 55011 || conducted EMC, environment 2 category C3 EN/IEC 61800-3 || conducted EMC, category C2 EN/IEC 61800-3 || conducted EMC, environments 1 and 2 EN/IEC 61800-3 || electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2 || susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3 || 1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5 || electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4 || radiated EMC, class A group 2 EN 55011 || radiated EMC, category C3 EN/IEC 61800-3

Pollution Degree

2 EN/IEC 61800-5-1

Ambient Air Temperature For Storage

-25-70 °C

Type Of Cooling

natural convection

Ip Degree Of Protection

IP20 EN/IEC 60529 || IP20 EN/IEC 61800-5-1

Operating Altitude

<= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with conditions

Relative Humidity

Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP110705EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI110605EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Product Compatibility

servo motor BMH 70 mm, 1 || servo motor BSH 70 mm, 1 || servo motor BSH 55 mm, 3 || servo motor BSH 55 mm, 1 || servo motor BSH 55 mm, 2

Type Of Cable

single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR

Discrete Input Logic

positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 || positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 || positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1

Height

270 mm

Electrical Isolation

between power and control

Physical Interface

2-wire RS485 multidrop Modbus

Status Led

1 LED (Red) servo drive voltage || 1 LED error || 1 LED RUN

Discrete Input Voltage

24 V DC capture || 24 V DC logic || 24 V DC safety

Transmission Rate

1 Mbps 4-4 m CANopen, CANmotion || 125 kbps 500-500 m CANopen, CANmotion || 250 kbps 250-250 m CANopen, CANmotion || 50 kbps 1000-1000 m CANopen, CANmotion || 500 kbps 100-100 m CANopen, CANmotion || 9600, 19200, 38400 bps 40-40 m Modbus

Response Time

<= 5 ms compliment of STO_A, compliment of STO_B

Signalling Function

display of faults 7 segments

Marking

CE

Net Weight

1.7 kg

Contact Bounce Time

<= 1 ms compliment of STO_A, compliment of STO_B || 2 µs CAP || 0.25 µs...1.5 ms DI

Connector Type

RJ45 (labelled CN4 or CN5) CANmotion || RJ45 (labelled CN4 or CN5) CANopen || RJ45 (labelled CN7) Modbus

Communication Interface

CANmotion, Integrated || CANopen, Integrated || Modbus, Integrated

Communication Service

1 receive SDO CANmotion || 1 transmit SDO CANmotion || 2 PDOs conforming to DSP 402 CANmotion || 2 SDOs receive CANopen || 2 SDOs send CANopen || 4 configurable mapping PDOs CANopen || CANopen device profile drives and motion control CANopen, CANmotion || display of faults on integrated display terminal Modbus || emergency CANopen, CANmotion || event-triggered, time-triggered, remotely requested,sync (cyclic), sync(acyclic) CANopen || node guarding, heartbeat CANopen || position control mode CANmotion || position control, speed profile, torque profile and homing mode CANopen || sync CANmotion

Braking Current

50 mA

Electrical Connection

terminal 3 mm², AWG 12 CN8) || terminal 5 mm², AWG 10 CN1) || terminal 5 mm², AWG 10 CN10)

Discrete Output Voltage

<= 30 V DC

Switching Frequency

8 kHz

Discrete Output Number

2

Discrete Output Logic

positive or negative DO)EN/IEC 61131-2

Discrete Input Type

capture CAP || logic DI || safety compliment of STO_A, compliment of STO_B

Method Of Access

slave

Control Signal Type

servo motor encoder feedback

Safety Function

STO (safe torque off), Integrated

Number Of Addresses

1-127 CANopen, CANmotion || 1-247 Modbus

Output Voltage

<= power supply voltage

Operating Position

vertical +/- 10 degree

Maximum Leakage Current

30 mA

Width

48 mm

Overvoltage Category

III

Depth

237 mm

Tightening Torque

CN8 0.5-0.5 N.m || CN1 0.7-0.7 N.m || CN10 0.7-0.7 N.m

Protection Type

against reverse polarity inputs signal || against short-circuits outputs signal

Discrete Input Number

1 capture || 2 safety || 4 logic

Discrete Output Type

logic DO)24 V DC

Response Time On Output

250 µs DO)discrete

Safety Level

SIL 3 EN/IEC 61508 || PL = e ISO 13849-1

Sampling Duration

DI 0.25 ms discrete

Specifications

Network Frequency

47.5...63 Hz

[Us] Rated Supply Voltage

100...120 V - 15...10 % || 200...240 V - 15...10 %

Output Current 3S Peak

6 A 115 V 5 s || 9 A 230 V 5 s

Range Of Product

Lexium 32

Format Of The Drive

book

Product Or Component Type

motion servo drive

Phase

single phase

Line Current

5.2 A 90 % 115 V, with external line choke 2 mH || 6.3 A 107 % 230 V, with external line choke 2 mH || 5.4 A 159 % 115 V, without line choke || 4.5 A 166 % 230 V, without line choke

Supply Voltage Limits

85-132 V || 170-264 V

Emc Filter

integrated

Nominal Power

0.3 kW 115 V 8 kHz || 0.5 kW 230 V 8 kHz

Continuous Output Current

3 A 8 kHz

Continuous Power

400 W 115 V || 900 W 230 V

Device Short Name

LXM32A

Supply Frequency

50/60 Hz - 5...5 %
