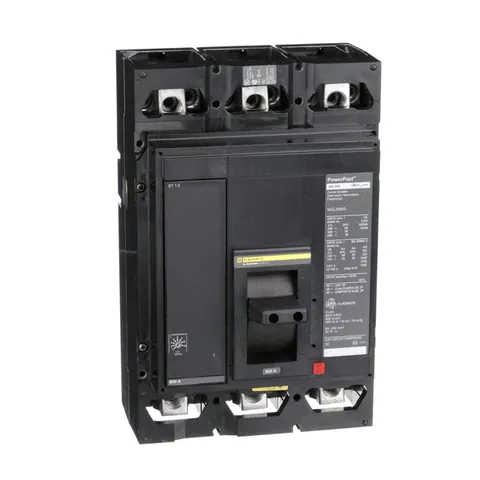

Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 18kA, lugs, ET 1.0, 80%
MGL36800
MGL36800
MGL36800
MGL36800
MGL36800
  • Get up to 90 days payment terms from 500+ suppliers
  • Reselling discounts up to 40%!
Sign-Up
Send request for price
1
Payment methods:
A total of 1 Part In-Stock from 6 Distributors

Additional Information

Part Number
MGL36800
UPC
785901575801
UNSPSC
39121601
Tariff Code
8536200020
Country of Origin
US

Environment

Ambient Air Temperature For Operation
-25-70 °C
Standards
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Certifications
UL || CSA || NOM
Ip Degree Of Protection
IP40
Pollution Degree
3 IEC 60947-1
Ambient Air Temperature For Storage
-50-85 °C
Quality Labels
CE
Operating Altitude
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Mercury Free
Yes
Environmental Disclosure
ENVPEP2206030EN
Sustainable Offer Status
Green Premium product
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
California Proposition 65
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile
ENVEOLI2206030EN
Eu Rohs Directive
Compliant with Exemptions

Complementary

Mounting Mode
unit mount lug)
Network Frequency
50/60 Hz
Terminal Identifier
AL800M23K
[Ics] Rated Service Breaking Capacity
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Trip Unit Technology
electronic, basic, ET 1.0,
Trip Unit Name
ET 1.0
Height
12.86 in
[Ue] Rated Operational Voltage
600 V AC 50/60 Hz UL 489
Tightening Torque
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
Mounting Support
lug
Breaking Capacity Code
G
Magnetic Tripping Current
1600-8000 A
Local Signalling
1 trip indicator green)
Number Of Slots
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Electrical Connection
lugs, load || lugs, line
Net Weight
29 lb(US)
[Uimp] Rated Impulse Withstand Voltage
8 kV IEC 60947-2
Control Type
operating handle
Circuit Breaker Application
HACR rated
Wire Stripping Length
25 mm
Line Rated Current
800-800 A
Utilisation Category
category A
Long Time Pick-Up Adjustment Range
300...800 A
Continuous Current Rating
80 %
Breaking Capacity
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ui] Rated Insulation Voltage
750 V IEC 60947-2
Suitability For Isolation
yes IEC 60947-2
Poles Description
3P
Quantity Per Set
1
Awg Gauge
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Color
Black
Width
8.27 in
Depth
8.05 in

Specifications

Product Or Component Type
circuit breaker
Product Name
PowerPact M
Range
PowerPact
Device Application
distribution
