Schneider Electric RXM2AB2BD

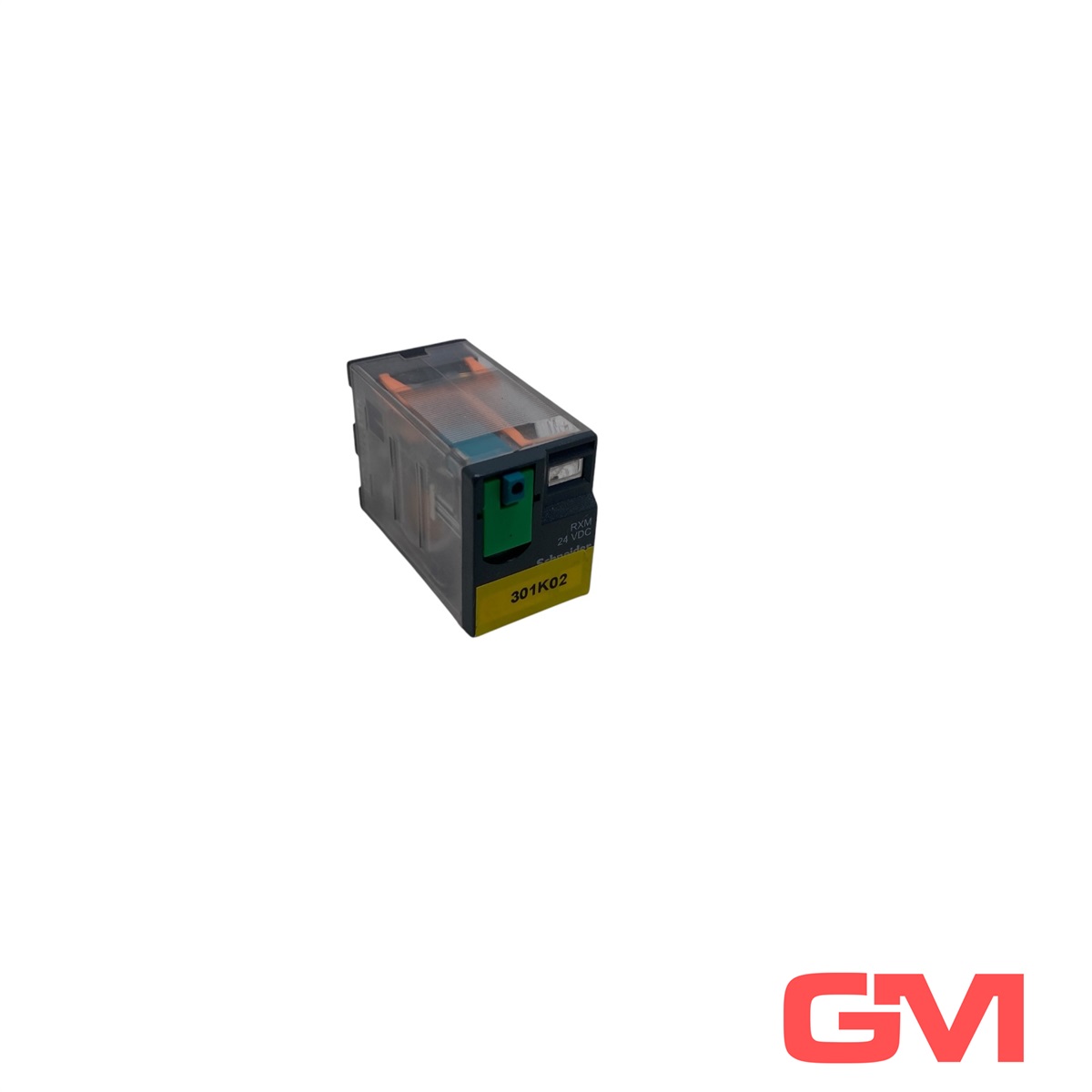

The RXM miniature relay is a part of Harmony Electromechanical Relays, specifically designed for use with RXZE sockets. This plug-in relay features a configuration of 2 C/O contacts and is rated for a maximum current of 12A at 24V DC. It includes a lockable test button that allows for momentary activation by pressing the blue button, with the ability to lock it in place using the green lever. The relay's operational status is visually indicated by an orange flag, while a green LED provides a clear visual signal when the relay is energized, ensuring visibility in various lighting conditions.

This relay is suitable for a range of applications, including industrial machines, HVAC systems, automation control panels, and motor controls, among others. It complies with several international standards and certifications, such as IEC, CE, UL, and RoHS, ensuring its reliability and safety in diverse environments. The RXM relay is designed to operate under temperatures ranging from -40°C to 55°C and is built to withstand vibrations and shocks, making it ideal for demanding industrial settings.

For installation, it is recommended to use the RXZE socket, which features screw clamp or push-in terminals. Additional accessories, such as protection modules and a marking legend, are also available to enhance its functionality. The RXM relay series offers various configurations, including options with 3 CO and 4 CO contacts, providing flexibility for different automation needs.
