SH31002P02F2100

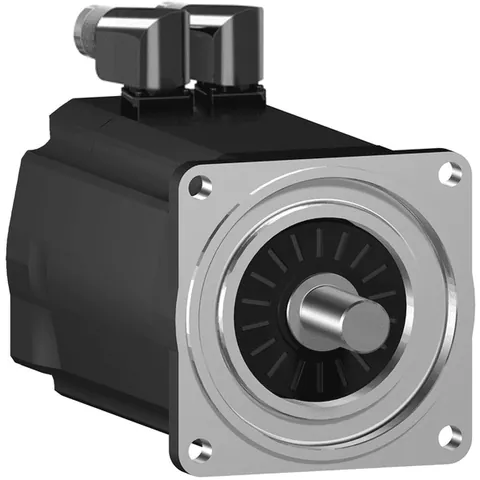

Name: servo motor SH3 100 5,8Nm,nokey,multi,brake,90°conn.IP65/IP65,6k RPM
Brand: Schneider Electric
SKU: SH31002P02F2100
Availability: InStock

1 / 2

Description

Active Mature

This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 4-pole servo motor features maximum mechanical speed of 6000RPM and smooth shaft end with holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 4.8A and a continuous power of 1900W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP65 rated product. The length of this product is 234.5mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 6.3kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

Country of Origin: DE
Part Number: SH31002P02F2100
Tariff Code: 85015220
EAN: 3606485296739
UNSPSC: 39121021

£2,488.50

net

£2,765.00

Shipping from:

£35.00

Payment methods:

Best offer from:: Trusted Automa.Net Supplier
Availability:: 1 pc.
In-Stock
Updated at: 22-11-2024
Warranty:: 6 months
Estimated Delivery:: 25-26 November to United Kingdom
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

Shipping Information

Secure Payment Process

Return & Refund Policies

Shipping Policies

Warranty Policies

Complementary

Circle Diameter Of The Mounting Holes: 115 mm
Continuous Power: 1900 W
Maximum Mechanical Speed: 6000 rpm
Holding Torque: 9 N.m
Maximum Radial Force Fr: 990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm
Encoder Type: absolute multiturn SinCos Hiperface
Mounting Support: international standard flange
Rotor Inertia: 2.928 kg.cm²
Number Of Motor Poles: 4
Back Emf Constant: 77 V/krpm 20 °C
Maximum Axial Force Fa: 160 N
Centring Collar Depth: 3.5 mm
Holding Brake: with
Speed Feedback Resolution: 128 periods
Shaft Length: 40 mm
Phase: three phase
Length: 234.5 mm
Net Weight: 6.3 kg
Maximum Current Irms: 17.1 A
Centring Collar Diameter: 95 mm
Stator Inductance: 19.5 mH
Motor Flange Size: 100 mm
[Us] Rated Supply Voltage: 115...480 V
Peak Stall Torque: 18.3 N.m 115...480 V three phase
Number Of Mounting Holes: 4
Shaft Diameter: 19 mm
Nominal Output Power: 580 W 115 V single phase || 1090 W 230 V single phase || 1930 W 400 V three phase || 2210 W 480 V three phase
Mounting Holes Diameter: 9.0 mm
Type Of Cooling: natural convection
Ip Degree Of Protection: motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Shaft End: smooth shaft
Nominal Speed: 1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase
Electrical Connection: rotatable right angled connector
Stator Resistance: 2.4 Ohm
Continuous Stall Current: 4.8 A
Nominal Torque: 5.5 N.m 115 V single phase || 5.2 N.m 230 V single phase || 4.6 N.m 400 V three phase || 4.4 N.m 480 V three phase
Torque Constant: 1.21 N.m/A 120 °C
Continuous Stall Torque: 5.8 N.m 115...480 V three phase

Offer Sustainability

Rohs Exemption Information: Yes
Mercury Free: Yes
Environmental Disclosure: ENVPEP111049EN
Sustainable Offer Status: Green Premium product
Pvc Free: Yes
Reach Regulation: Reference contains Substances of Very High Concern above the threshold
California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation: X
Circularity Profile: N/A
Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
