Schneider Electric
SXWSBTXXXSXX

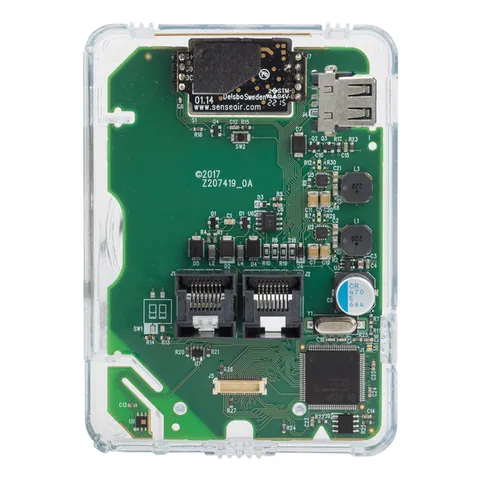

Sensor Base for SmartX IP Controllers Temperature - Cover not included
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Product Conditions:
Offer with manufacturer lead time
Ships in:1 - 2 business days
Best price:
€46.40
Additional Information
- Part Number
- SXWSBTXXXSXX
- Country of Origin
- MX
Environment
- Measurement Range
- 0...50 °C temperature
- Product Certifications
- CE EN 61000-6-3 || RCM || EAC || ICES-003
Specifications
- Flame Retardance
- UL94-V0
- Function Available
- with temperature sensor
- Height
- 111.6 mm
- Sensor Type
- transmitter
- Relative Humidity
- 0-95 %
- Standards
- UL 916 || FCC Part 15 class B
- Type Of Measurement
- Temperature
- Product Or Component Type
- sensor
- Ambient Air Temperature For Operation
- 0-50 °C
- Width
- 81.2 mm
- Color
- White
- Output Type
- SmartX Sensor Bus
- Depth
- 20.7 mm
- Product Name
- SmartX Living Space Sensor
- Location
- Living Space
- Ip Degree Of Protection
- IP20
- Range
- SpaceLogic
Complementary
- Communication Port Support
- RJ45
- [Us] Rated Supply Voltage
- 24 V DC
- Max Power Consumption In W
- 2 W
- Range Compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers || EcoStruxure Building Operation SmartX Living Space Sensor sensor coverplate
- Material
- ABS (acrylonitrile butadiene-styrene)
- Display Type
- Without Display
- Device Presentation
- without cover
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1803001
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1803001
- Eu Rohs Directive
- Compliant with Exemptions
Documents
Data Sheet
