Schneider Electric TM221ME32TK

Name: Modicon M221 Logic Controller with 32 IO, Transistor PNP Output
Brand: Schneider Electric
SKU: TM221ME32TK

Modicon M221 Logic Controller with 32 IO, Transistor PNP Output

1 / 2

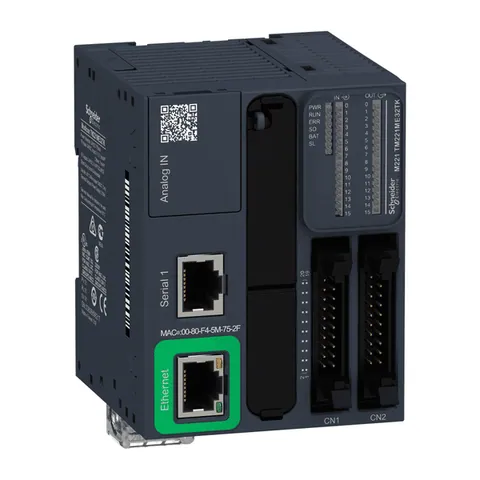

Manufacturer catalogue image

Product Description

Lifecycle Status:

The Schneider Electric Modicon M221 is a robust programmable logic controller designed for hardwired architectures. This device provides 16 discrete, 4 fast inputs, and 16 transistor outputs with ethernet PNP transistor output, offering a resolution of 10 bits. It operates at a rated supply/output voltage of 24V DC, with an output current of 0.1A, supporting sink or source input logic and positive output logic.

This Modicon M221 controller features integrated connections including a USB port with a mini B USB 2.0 connector, non-isolated serial link with RJ45 connector, RS232/RS485 interface, and ethernet with RJ45 connector. It comes with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory, and a SD card memory capacity of 2GB.

The Modicon M221 is an IP20 rated product, measuring 70mm (Width) x 70mm (Depth) x 90mm (Height) and weighing 0.27kg. It is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC, and CULus, meeting EN/IEC 61010-2-201, EN/IEC 61131-2, and EN/IEC 60664-1 standards. It supports DIN rail mount.

This product allows you to achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications, and function blocks.

Need more information?

Call us at:+48 17 778 34 19

Compare offers

Payment methods:

Offer details

Offer from:: Trusted supplier — United States, member since 2023
Availability:: 3 pcs.
In-Stock
Updated at: 06-10-2026
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Discrete Input Logic: sink or source (positive/negative)
Data Backed Up: 256 kB built-in flash memory backup of application and data
Exct Time For Event Task: 60 µs response time
Input Impedance: 100 kOhm analog input || 3.4 kOhm input || 4.9 kOhm fast input
Electrical Connection: terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || HE-10 connector, 20 for inputs || HE-10 connector, 20 for outputs
Maximum Cable Distance Between Devices: shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output

Available Offers

(7)

Condition	Availability	Supplier	Warranty
Condition New Factory Sealed	Availability 3 pcs. In-Stock Updated at: 06-10-2026	Supplier United StatesTrusted supplier — member since 2023	Warranty 12 months
Condition New Surplus	Availability On requestLead time: 15 days	Supplier RomaniaTrusted supplier — member since 2023, 1–4 employees	Warranty Not specified
Condition New Factory Sealed	Availability 99 pcs. In-Stock Updated at: 07-10-2026	Supplier NetherlandsTrusted supplier — member since 2021, 100–499 employees	Warranty 24 months
Condition New Factory Sealed	Availability 5 pcs. In-Stock Updated at: 07-10-2026	Supplier PolandTrusted supplier — member since 2023, 50–99 employees	Warranty 24 months
Condition New Factory Sealed	Availability On requestLead time to be confirmed	Supplier GermanyTrusted supplier — member since 2024	Warranty Not specified
Condition New Factory Sealed	Availability On requestLead time to be confirmed	Supplier ItalyTrusted supplier — member since 2021, 10–19 employees	Warranty 12 months

Offer with manufacturer lead time

Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.

Documents

Data Sheet

Datasheet for Schneider Electric TM221ME32TK, including specifications and features.

Download Data Sheet

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model

Product data updated: 06-10-2026
