V4

Environment

Product Certifications

UL || CSA || GL || UKCA

Ambient Air Temperature For Operation

-20-50 °C

Standards

IEC 60947-3

Ip Degree Of Protection

IP20 conforming to IEC 60529

Protective Treatment

TC

Mechanical Robustness

vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Fire Resistance

960 °C IEC 60695-2-1

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP2211006

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Toxic Heavy Metal Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

N/A

Eu Rohs Directive

Compliant with Exemptions

Halogen Content Performance

Halogen free product

Complementary

Network Frequency

50/60 Hz

[Ue] Rated Operational Voltage

690 V AC 50/60 Hz

Height

83 mm

Intermittent Duty Class

30

[Ith] Conventional Free Air Thermal Current

80 A

Mounting Support

plate || symmetrical rail

Network Type

DC || AC

[Ithe] Conventional Enclosed Thermal Current

63 A

Net Weight

0.5 kg

Performance Level

high performance

[Uimp] Rated Impulse Withstand Voltage

8 kV

Making Capacity

800 A 400 V AC-21A || 800 A 400 V AC-22A || 800 A 400 V AC-23A

Connections - Terminals

power circuit screw clamp terminals 16-16 mm² flexible - with cable end || power circuit screw clamp terminals 25-25 mm² solid

Contacts Type And Composition

3 NO

[Icm] Rated Short-Circuit Making Capacity

2.1 kA 400 V at Ipeak

Electrical Durability

30000 cycles AC-21 || 30000 cycles DC-1...5

Suitability For Isolation

yes

[Ie] Rated Operational Current

57 A AC-23 Ue: 400 V

Mechanical Durability

30000 cycles

Poles Description

3P

Width

60 mm

Tightening Torque

power circuit 4-4 N.m screw clamp terminals

Depth

65 mm

Breaking Capacity

640 A 400 V AC-21A) || 640 A 400 V AC-22A) || 640 A 400 V AC-23A)

Rated Operational Power In W

15 kW 230...240 V AC-3) || 22 kW 400...415 V AC-3) || 30 kW 500 V AC-3) || 30 kW 690 V AC-23A) || 37 kW 500 V AC-23A) || 18.5 kW 690 V AC-3) || 18.5 kW 230...240 V AC-23A) || 30 kW 400...415 V AC-23A)

Rated Conditional Short-Circuit Current

10 kA 400 V 80 A aM || 10 kA 400 V 80 A gG

[Icw] Rated Short-Time Withstand Current

960 A 400 V 1 s

Specifications

Product Or Component Type

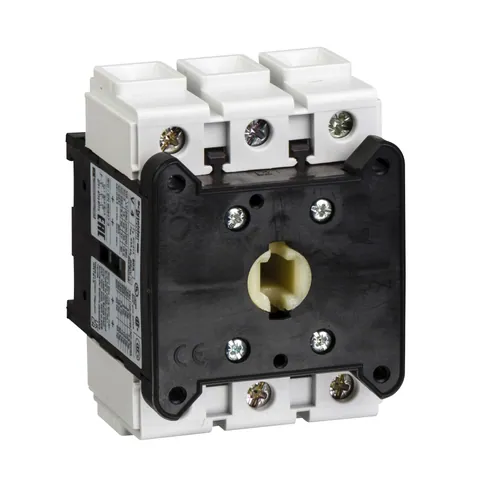

switch body

Product Name

TeSys VARIO

Range

TeSys

Device Short Name

V

CAD Models

traceparts
