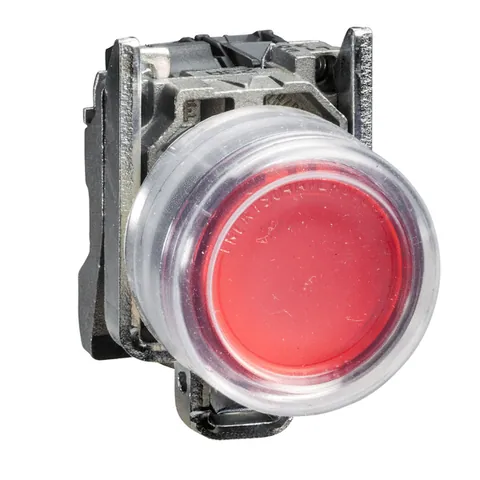

XB4BP42

Environment

Product Certifications

CSA || DNV || LROS (Lloyds register of shipping) || UL Listed || BV || GL

Ik Degree Of Protection

IK06 IEC 50102

Ambient Air Temperature For Operation

-40-70 °C

Standards

CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-1

Shock Resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Vibration Resistance

5 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection

IP66 IEC 60529 || IP67

Ambient Air Temperature For Storage

-40-70 °C

Overvoltage Category

class I IEC 60536

Nema Degree Of Protection

NEMA 13 || NEMA 4X

Protective Treatment

TH

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1808008EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1808008EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Contacts Usage

standard contacts

Height

47 mm

Terminals Description Iso N°1

(21-22)NC

Operating Force

3.5 N NC changing electrical state

Short-Circuit Protection

10 A cartridge fuse gG IEC 60947-5-1

Operating Travel

1.5 mm NC changing electrical state) || 4.3 mm total travel)

Contacts Material

silver alloy (Ag/Ni)

Positive Opening

with IEC 60947-5-1 appendix K

[Ith] Conventional Free Air Thermal Current

10 A IEC 60947-5-1

Net Weight

0.082 kg

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947-1

Device Presentation

complete product

Resistance To High Pressure Washer

7000000 Pa 55 °C 0.1 m

Electrical Durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

[Ui] Rated Insulation Voltage

600 V 3)IEC 60947-1

[Ie] Rated Operational Current

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Mechanical Durability

10000000 cycles

Electrical Reliability

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Width

30 mm

Depth

61 mm

Tightening Torque

0.8-1.2 N.m IEC 60947-1

Shape Of Screw Head

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Specifications

Operator Additional Information

clear boot

Range Of Product

Harmony XB4

Mounting Diameter

22 mm

Type Of Operator

spring return

Product Or Component Type

push-button

Shape Of Signaling Unit Head

round

Fixing Collar Material

zamak

Head Type

standard

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Contacts Type And Composition

1 NC

Sale Per Indivisible Quantity

1

Bezel Material

chromium plated metal

Contact Operation

slow-break

Operator Profile

red projecting, unmarked

Product Compatibility

not compatible with legend holder

Device Short Name

XB4
