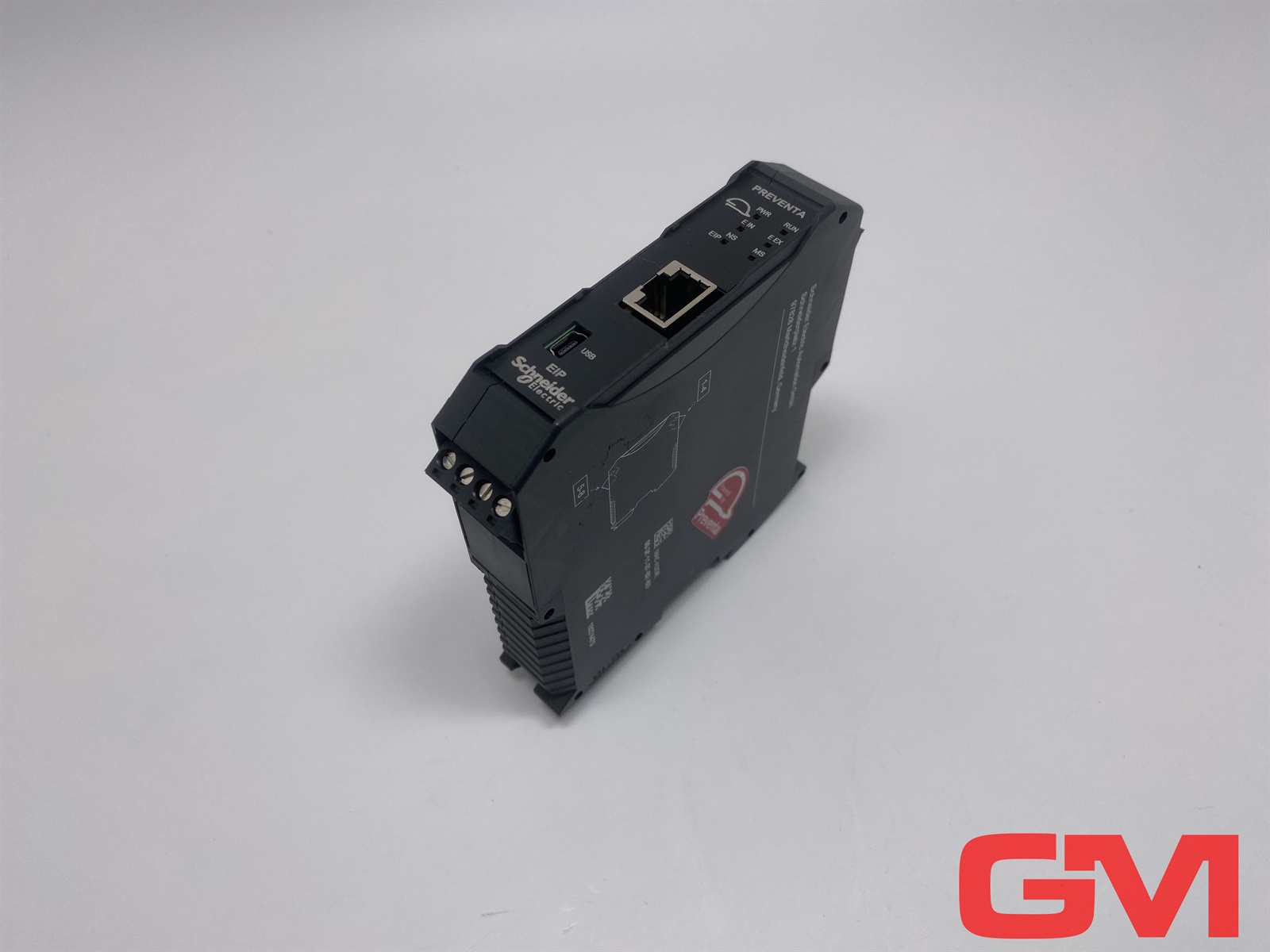

Schneider Electric XPSMCMCO0000EI

Key Features:

The Modicon MCM Standard Communication Module is a non-safe device that provides one Ethernet IP connection with a RJ45 connector. It's designed to monitor safety systems remotely using the commonly used Ethernet/IP protocol without additional gateways. The module offers two RJ45 ports and has a rated supply voltage of 24V DC.

Technical Specifications:

This communication module is IP20 rated and comes with screw clamp terminals and removable terminal blocks for electrical connection. It's designed for diagnostics connections and data communication purposes to machine field bus or network systems. The transmission rate varies from 10Mbit/s to 100Mbit/s.

Dimensions and Weight:

The module has dimensions of 22.5mm (Depth), 99mm (Height), and 114.5mm (Width) and weighs 0.3kg. It's powered with 24V DC and can connect to the safety controller via the backplane expansion connector.

Certifications:

This Modicon MCM Standard Communication Module is certified by RCM, CULus, and TÜV. It's compatible with accessories such as a memory card and the backplane connector.

Installation and Compatibility:

The communication module installs on Omega 35mm DIN rail conforming to EN 50022 and is connected to the safety controller via the backplane expansion connector. The Modicon MCM modular safety controller system provides flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status...
