Siemens 3RK2207-1BQ50-0AA3
K60 AS-i Compact Module, IP67, A/B Slave, 2AI
1 / 2

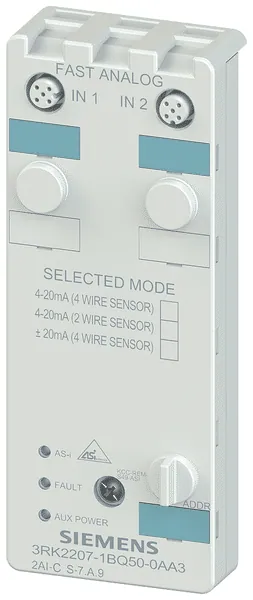

Manufacturer catalogue image
Product Description
RoHS CompliantLifecycle Status:
The K60 AS-i compact module functions as an A/B slave, specifically designed for field operation with a robust IP67 protection class. This module is equipped with two analog inputs capable of handling current signals ranging from 4 to 20 mA, and features a configurable input signal. Its A/D resolution stands at 14 bits, ensuring precision in data acquisition.
Constructed with a focus on durability, the module measures 60 mm in width, 152 mm in height, and 29 mm in depth. It utilizes M12 screw-type terminals for secure electrical connections, supporting a 4-conductor connection technology. The module can operate effectively in ambient temperatures between -20 °C and +60 °C, and can be stored under harsher conditions from -40 °C to +85 °C.
For installation, a mounting plate (3RK1901-0CA00) is required and must be ordered separately. The K60 module is compatible with AS-Interface protocols, expanding its integration capabilities within industrial environments.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — Czechia, member since 2021, 50–99 employees
- Availability:
- 1 pc.In-StockUpdated at: 14-09-2026
- Warranty:
- 24 months
- Condition:
- Used
Used - A previously used item with possible signs of cosmetic wear. It is fully operational and functions as intended, though the original packaging may be missing.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Siemens
- Input, current
- IO link master
- Input, voltage
- Output, current
- Input, resistor
- System accessory
